产品论述
APPLICATION
在轮胎生产体系中，胎圈是承载轮胎强度、保障气密性的核心部件，而三角胶贴合与包布工序的品质与效率，直接决定了胎圈的性能与生产产能。
针对行业内多规格生产适配难、人工依赖度高、贴合精度波动大等痛点，全自动三角胶贴合（& 包布）生产线，以全集成自动化方案，打造胎圈工序智能化升级新方案。

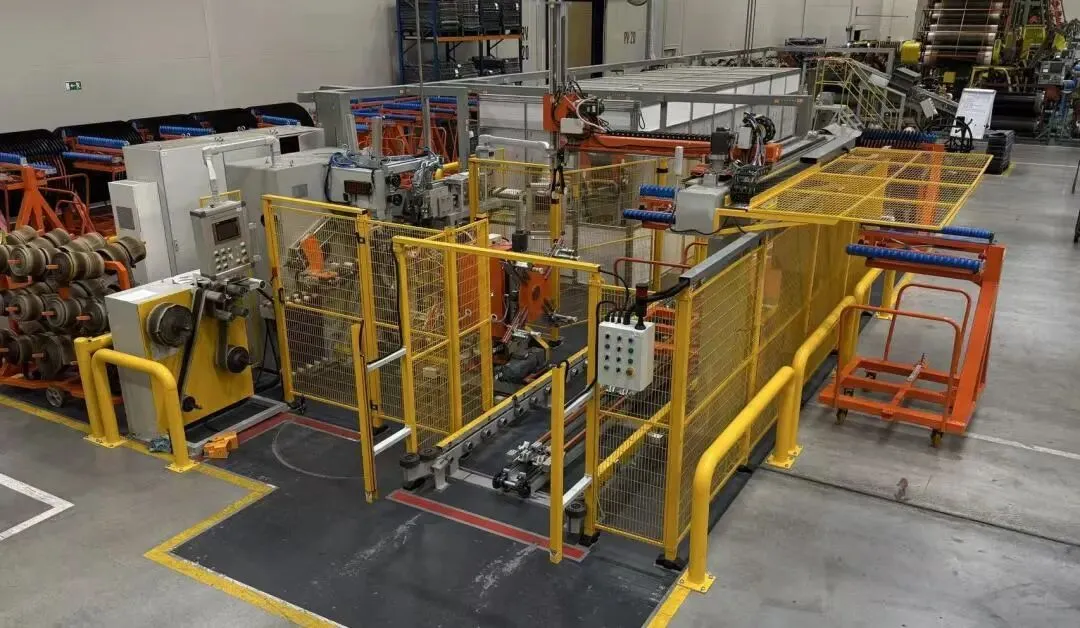

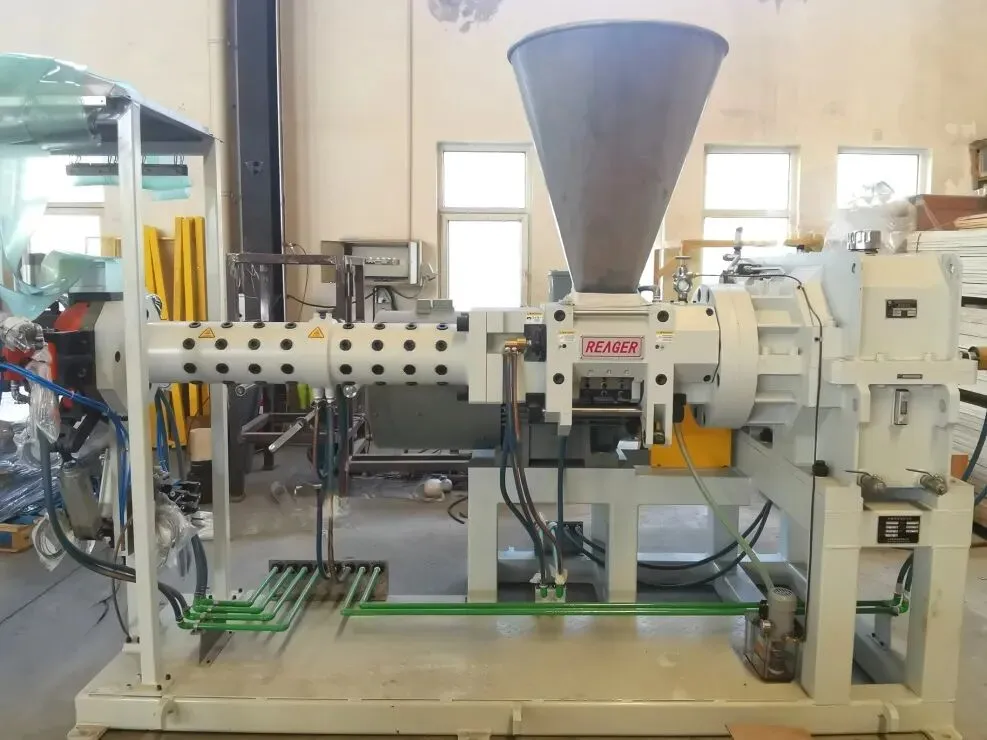

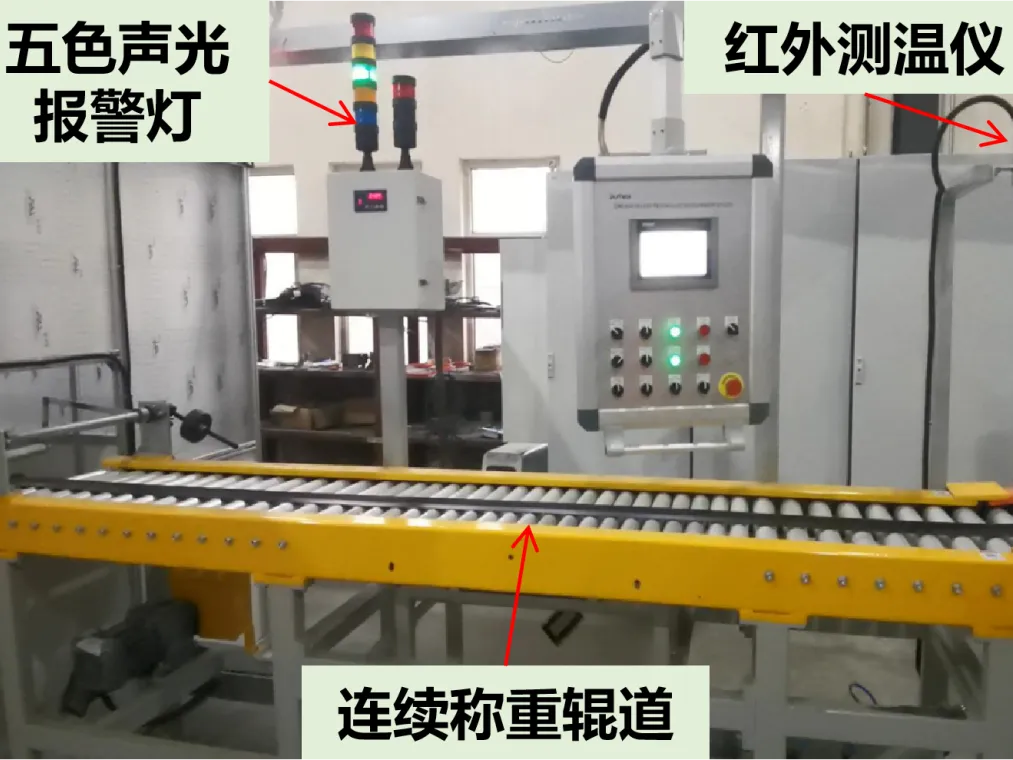

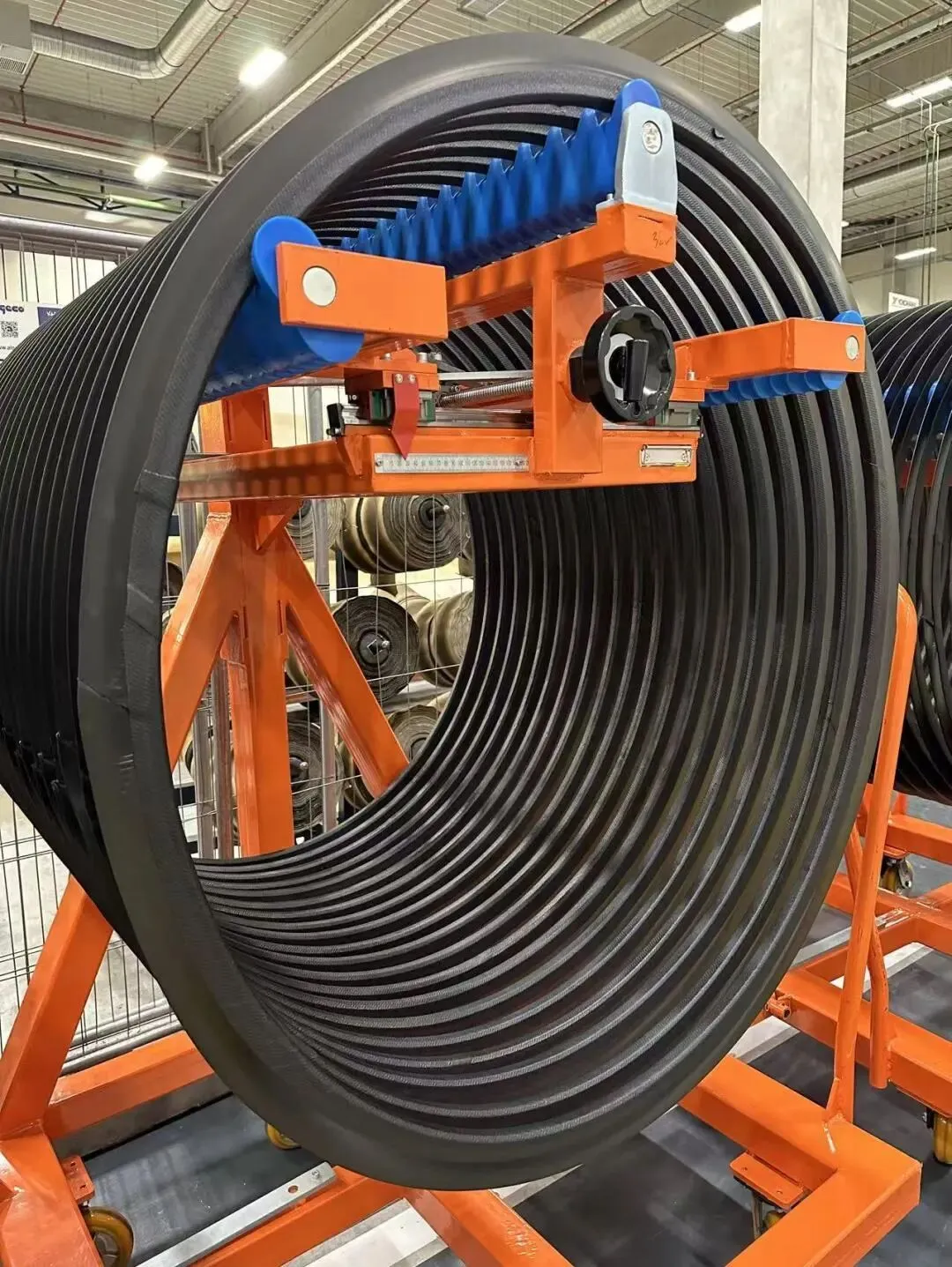

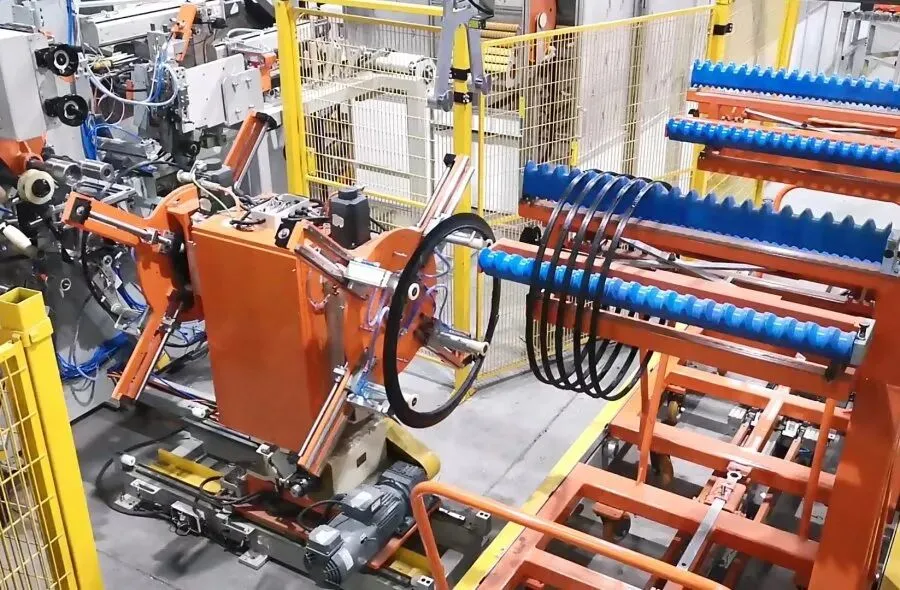

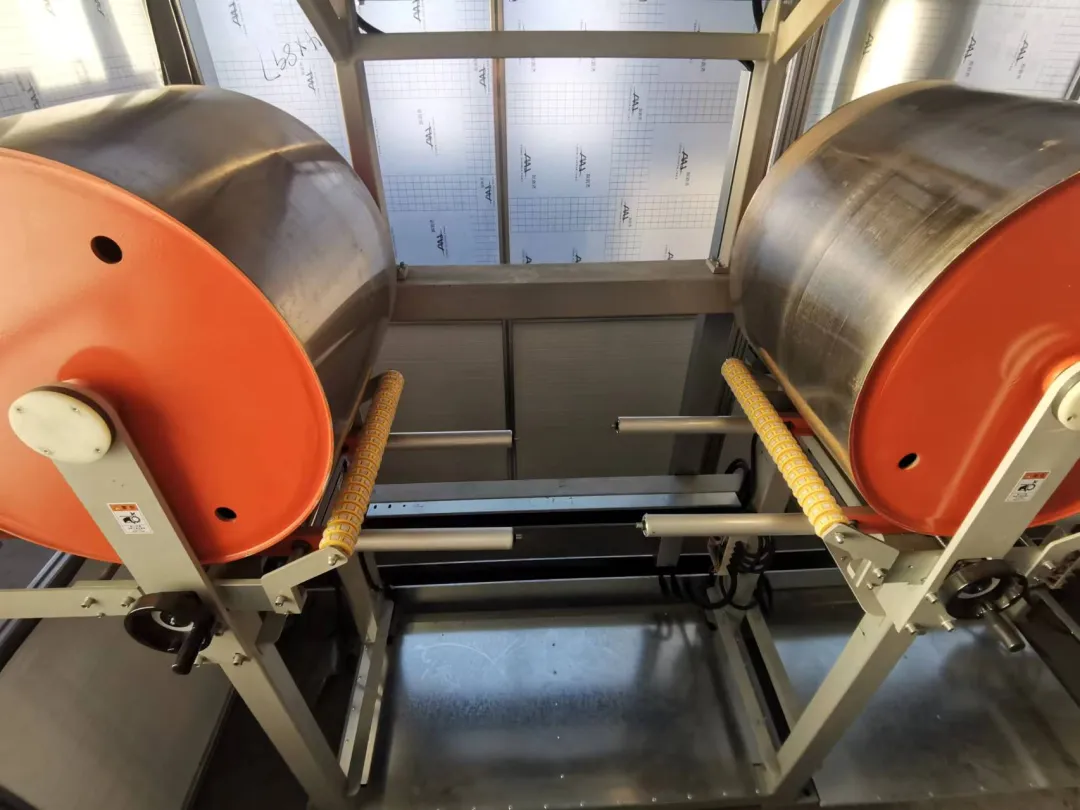

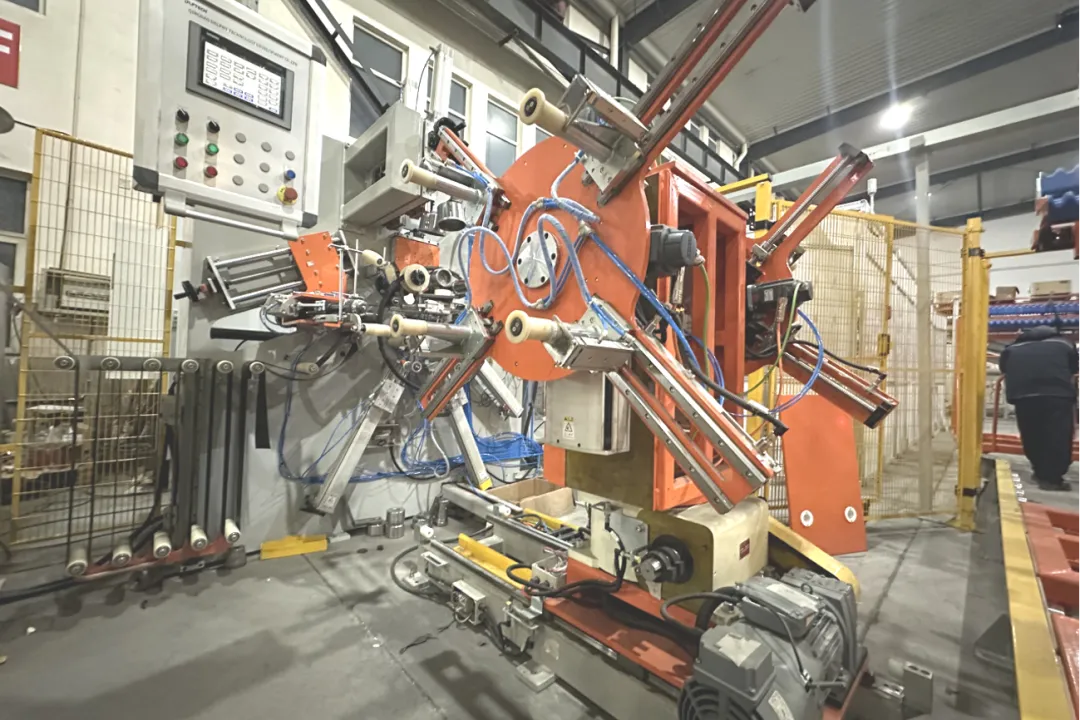

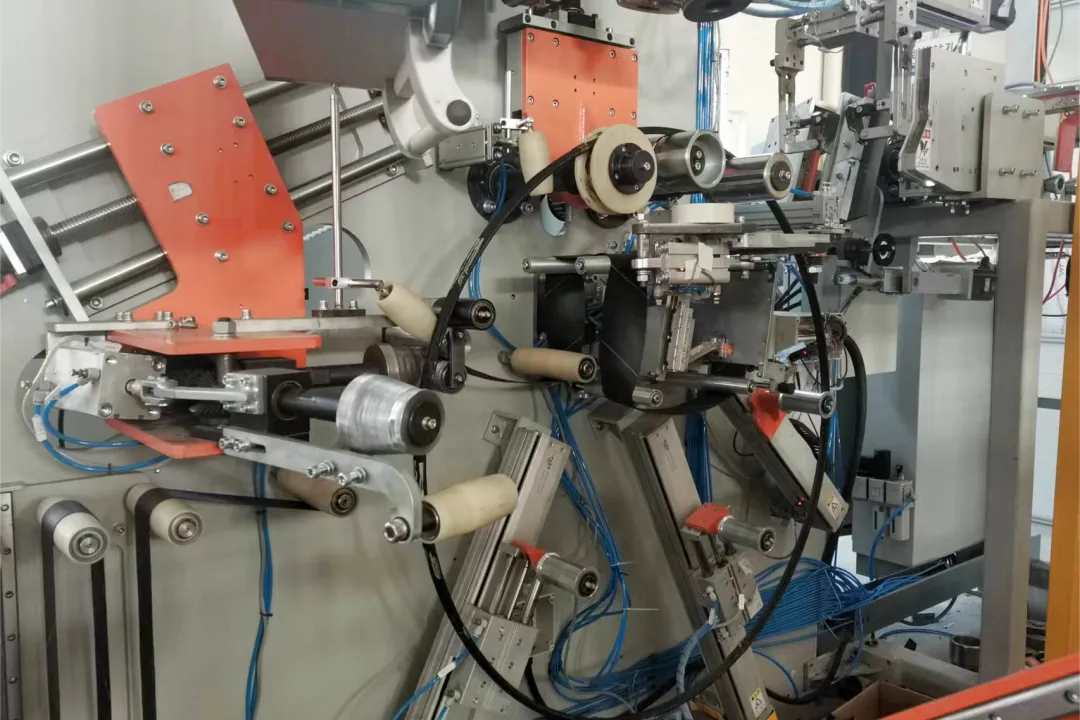

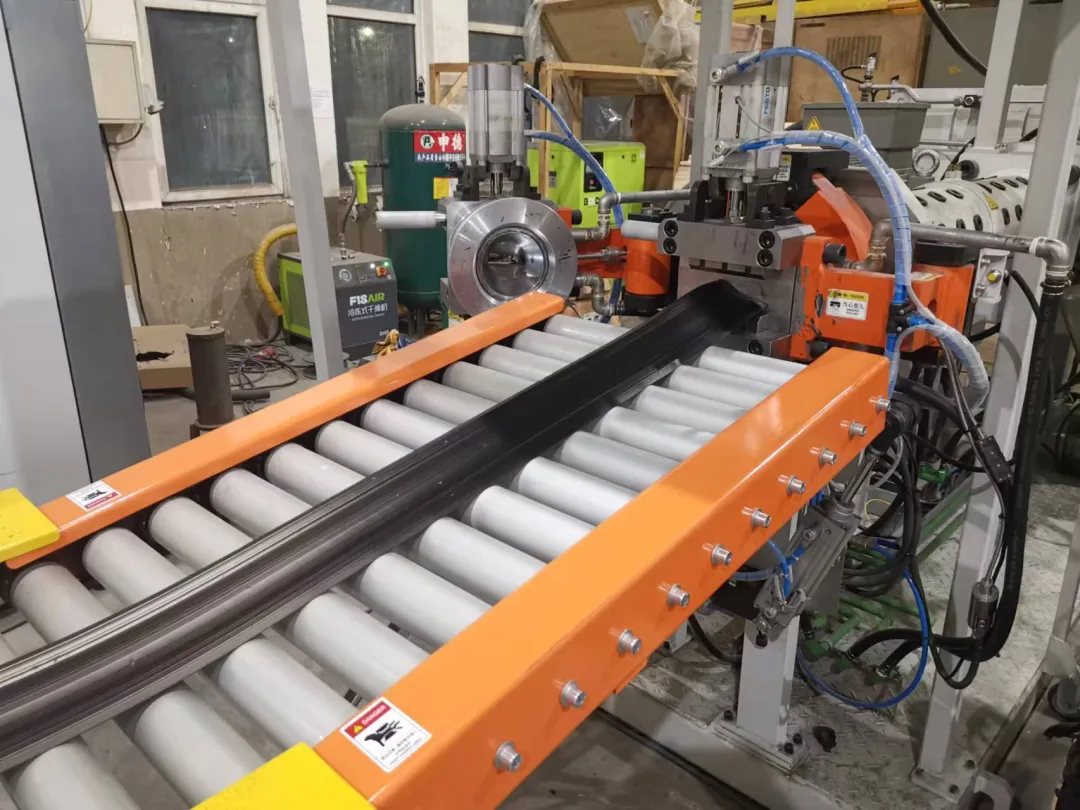

该设备是在覆胶钢丝圈上进行三角胶贴合 (& 包布) 的完全集成系统。整线从三角胶挤出、冷却、存储、贴合（包布同步导开、贴合和裁断）到贴合后的钢丝圈收集、存放和小车转运全部自动化操作。产品生产范围广，可实现不同尺寸、不同结构的钢圈三角胶贴合（& 包布）。
In the tire manufacturing system, the bead is a core component that bears the tire's structural strength and ensures air tightness. The quality and efficiency of the apex application and flipper wrapping processes directly determine bead performance and overall production capacity.
To address industry-wide pain points such as poor adaptability to multi-specification production, heavy reliance on manual labor, and wide fluctuations in application accuracy, the Fully Auto Apex Application (&Flipper) Production Line adopts a fully integrated automation solution, delivering a new intelligent upgrade scheme for bead processing procedures.
It’s fully integrated system for apex application and flippering on rubberized bead wire.The entire process from apex extrusion, conveying, cooling, storage, application (synchronous action of flipper let-off, application and cutting) to apexed bead collection, storage and trolley transportation is fully automatic. The system is with wide production range, uniform apex application (&flippering) performance for different bead wire size and structure.
产品优势
ADVANTAGES
全自动智能生产
1.自动化：全线智能联动，无人化操作。
2.高质量：恒压合力紧密贴合、接头均匀平整，两侧包布错边差级精度 ±5mm。
3.适用广：在线满足 26"~46" 不同规格胎圈的三角胶热帖 & 包布。
Fully Automatic Intelligent Production
1.Automation: Intelligent whole line linkage, unmanned operation.
2.Superior quality: Constant pressing force for tight application and even&flat joint, double-side flipper overlap accuracy:±5mm
3.Wide production range: online production for 26"~46" bead wire apexing&flippering.
全自动三角胶贴合（& 包布）生产线

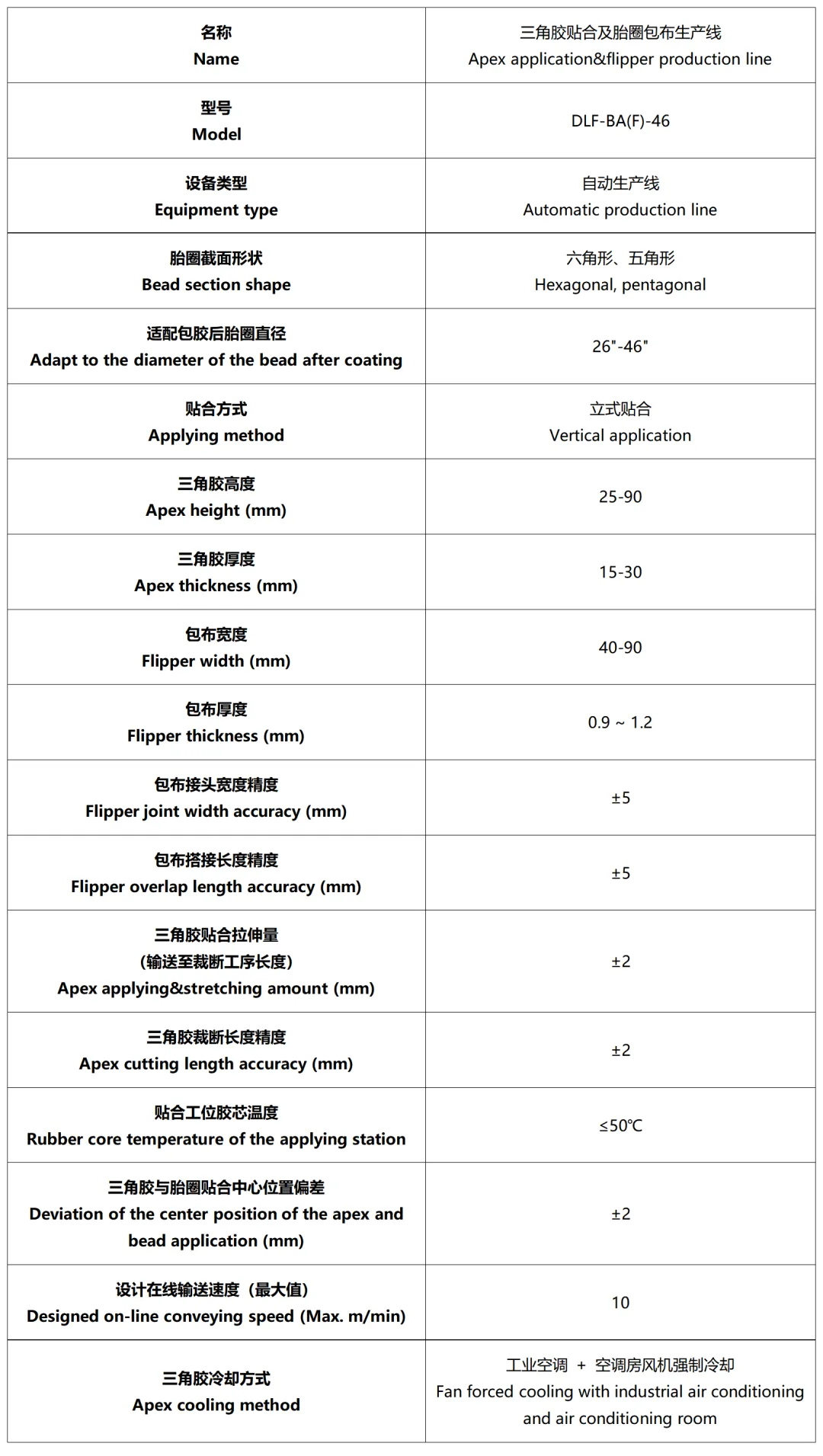

技术参数
TECHNICAL PARAMETERS
* 注：以上为常规参数，可根据客户实际工艺需求专项定制，更多详细参数可私信获取。
Note: The above are conventional parameters and can be specially customized according to customers' actual process requirements. For more detailed parameters, please contact us via private message.
如需了解设备详细参数、定制化方案，或预约实地考察，欢迎后台留言咨询，我们将第一时间为您对接。
For detailed equipment specifications, customized solutions or to schedule an on-site inspection, please feel free to leave us a message with your inquiries. Our team will follow up and assist you promptly.
