我公司是冰箱门封条生产线专业生产厂家，拥有超过20年的生产研发经验。

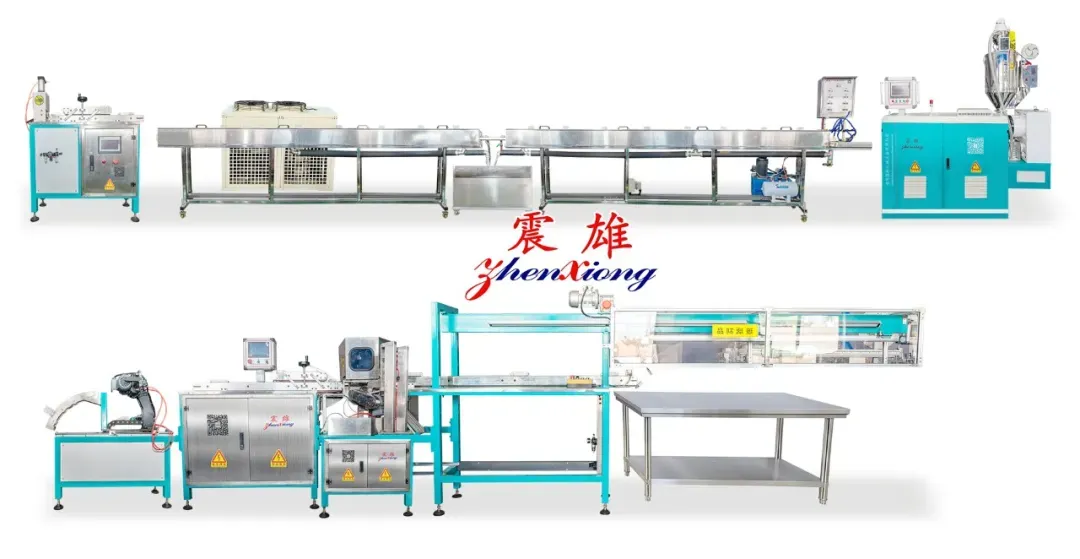

全自动冰箱门封条生产线，可实现生产门封条的同时，完成自动打孔、45°下料切角、机械手自动取料等，整线生产全部实现自动化，生产效率高、产能高、制品质量好。
Our company is a professional manufacturer of refrigerator door gasketproduction lines, with over 20 years of production and research and development experience.
The automatic refrigerator door gasketproduction line can achieve the production of door gasketwhile also completing automatic punching, 45 ° cutting angle, and mechanical arm automatic material retrieval. The entire production line is fully automated, with high production efficiency, high production capacity, and good product quality.
核心优势：
▶SJ75挤出机，配置PVC专业分离型螺杆，产能高且物料塑化效果好。
▶机头模具采用40Cr模具钢材质，调质锻打，强度高、耐损磨、模具精度高。
▶配置5P风冷式冷水机组，制品充分快速冷却定型，冷却水温可根据需要手动调节控制。
The automatic refrigerator door gasket production line adopts SJ75 extruder, equipped with PVC professional separation screw, with high production capacity and good material plasticization effect.
The head mold of the automatic refrigerator door gasket production line is made of 40Cr mold steel material, quenched, tempered and forged, with high strength, wear resistance, and mold accuracy.
The automatic refrigerator door gasket production line is equipped with a 5P air-cooled chiller unit, which allows the products to cool and solidify quickly. The cooling water temperature can be manually adjusted and controlled as needed.
▶配置自动干燥上料机，过载、缺料自动报警，减少人工成本；
▶两段冷却水槽，每段4米，冷却水路长，采用循环水喷淋冷却，冷却快速均匀，制品定型效果好。
▶牵引速度由变频器控制，带有气动裁切装置，切割长度尺寸可调。
▶45°全自动切割机，可将胶条两端切割成 45º角，切割精度±1mm。
▶机械手由光电控制，夹取胶条平稳放至接料案台。
Theautomatic refrigerator door gasket production line is equipped with an automatic drying and feeding machine, which automatically alarms for overload and shortage, reducing labor costs;
The automatic refrigerator door gasket production line has two cooling water tanks, each measuring 4 meters, with a long cooling water path. It adopts circulating water spray cooling, which is fast and uniform, and has a good product shaping effect.
The traction speed of the automatic refrigerator door gasket production line is controlled by a frequency converter, equipped with a pneumatic cutting device, and the cutting length size is adjustable.
The automatic refrigerator door gasket production line is equipped with a 45 ° fully automatic cutting machine, which can cut both ends of the rubber strip into a 45 º angle with a cutting accuracy of ± 1mm.
The mechanical arm of the automatic refrigerator door gasket production line is controlled by photoelectric, and the rubber strip is clamped and placed smoothly on the material receiving table.

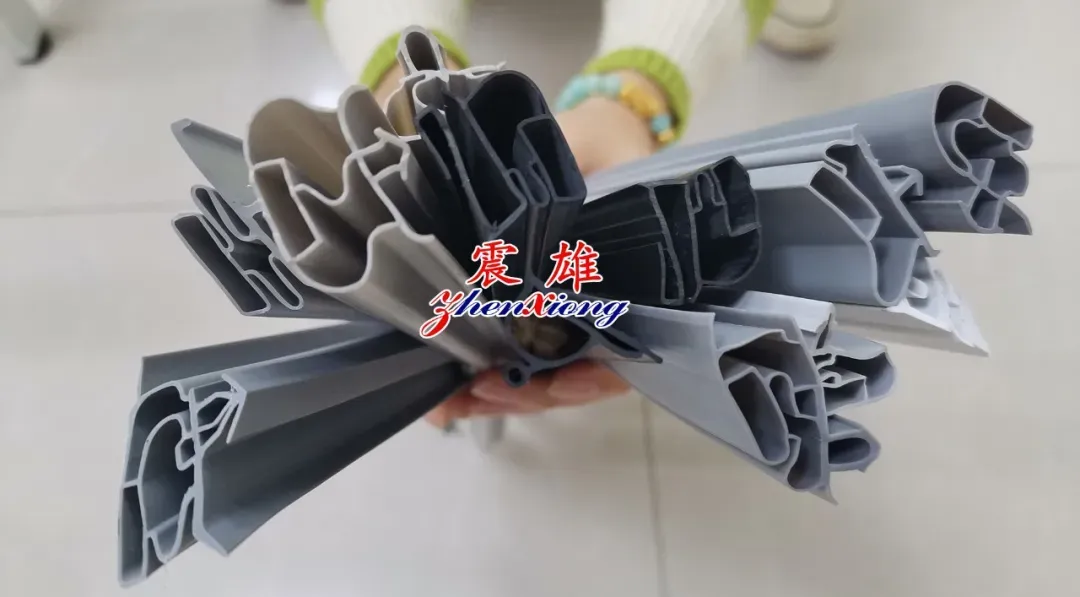

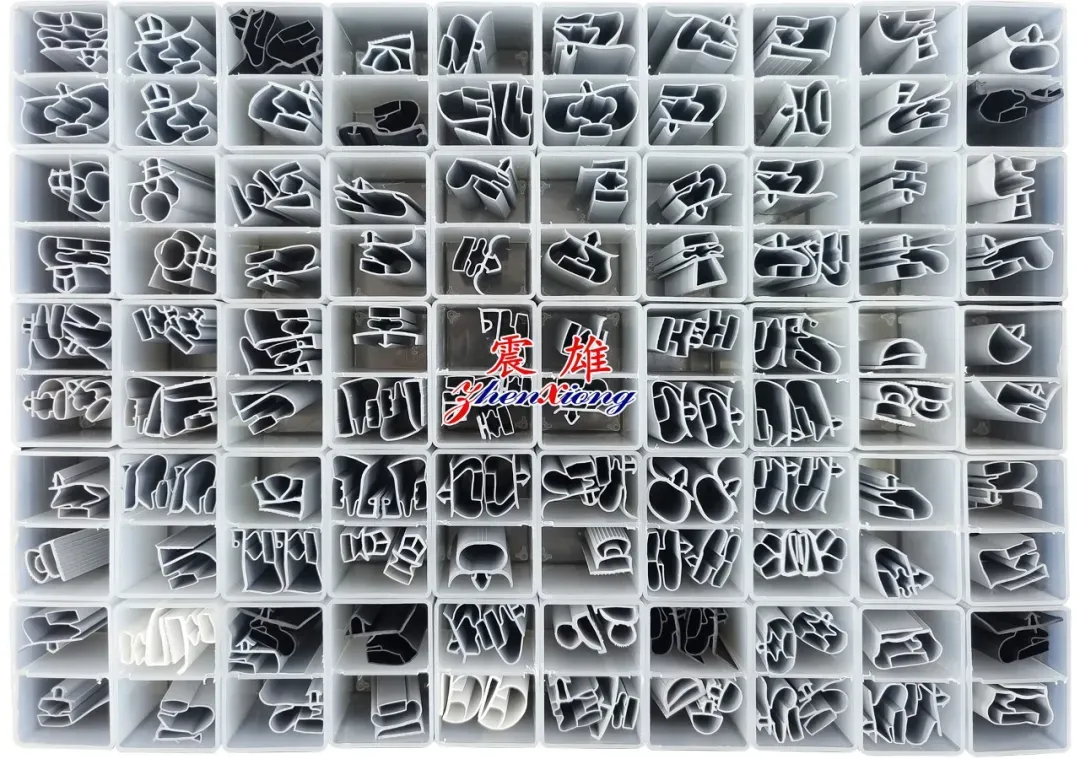

制品应用范围：
该线生产的门封条制品，表面平滑无毛刺、弹性强韧、厚度均匀、耐损磨、耐高低温、耐高低温、长期使用不易老化变形。
广泛应用于各种冰箱、冰柜、饮水机、饮料柜、消毒柜、厨具、型材门窗及多种日用产品和其它工业产品。
Application scope of products on the automatic refrigerator door gasket production line:
The door gasket products produced by theautomatic refrigerator door gasket production line have a smooth surface without burrs, strong elasticity, uniform thickness, wear resistance, high and low temperature resistance, high and low temperature resistance, and are not easily aged or deformed after long-term use. Widely used in various refrigerators, freezers, water dispensers, beverage cabinets, disinfection cabinets, kitchenware, profile doors and windows, as well as various daily products and other industrial products.
我们公司已成立20余年
