工程胎 / 巨胎钢丝圈缠绕生产线 OTR/Giant tire bead winding system

点击蓝字

关注我们

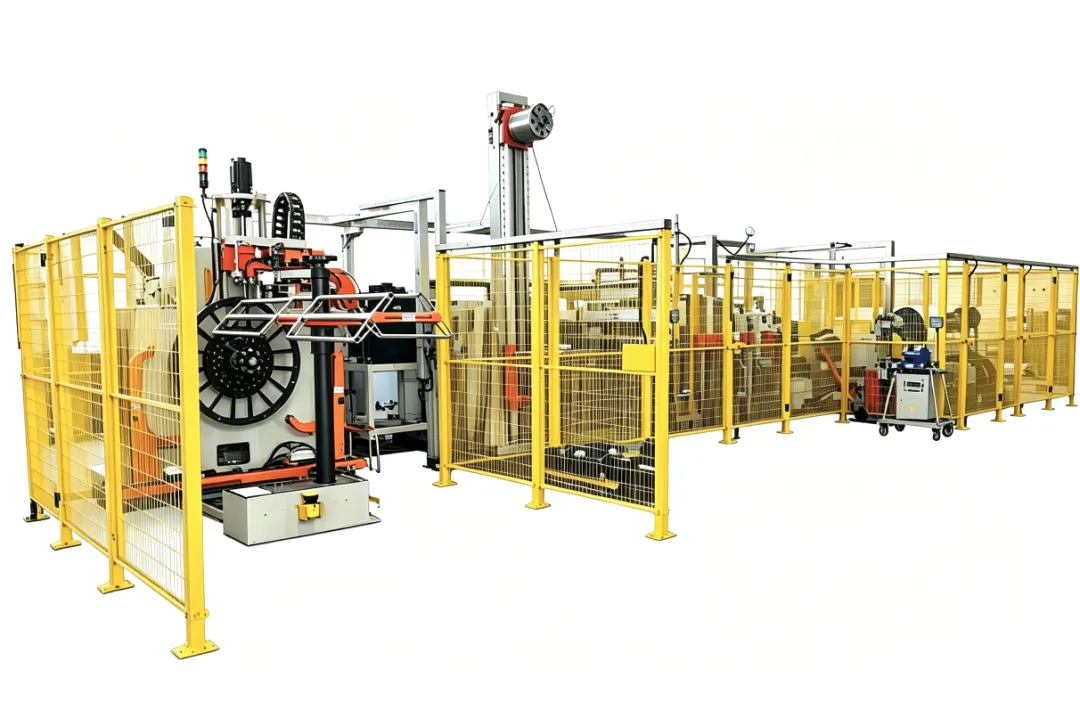

作为工程胎、巨型轮胎的核心受力部件，钢丝圈的断面钢丝排列精度与覆胶质量直接决定轮胎的承载性能与使用寿命。针对重型轮胎钢丝圈成型环节普遍存在的断面适配性弱、覆胶易翘头散丝、人工依赖度高、生产效率低等痛点，工程胎 / 巨胎钢丝圈缠绕生产线可实现多断面规格钢丝圈的高精度成型，以自动化、高精度、高稳定性的表现，为轮胎制造企业提供成熟的成型工序解决方案。

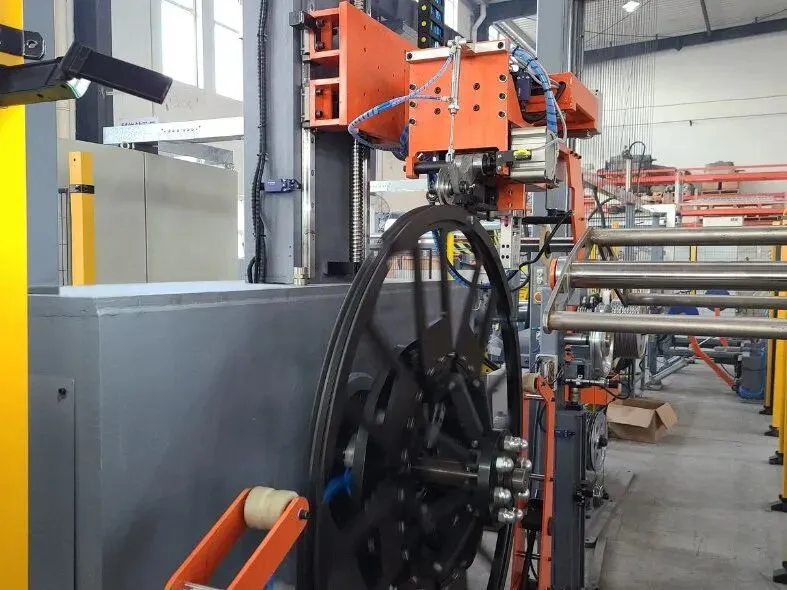

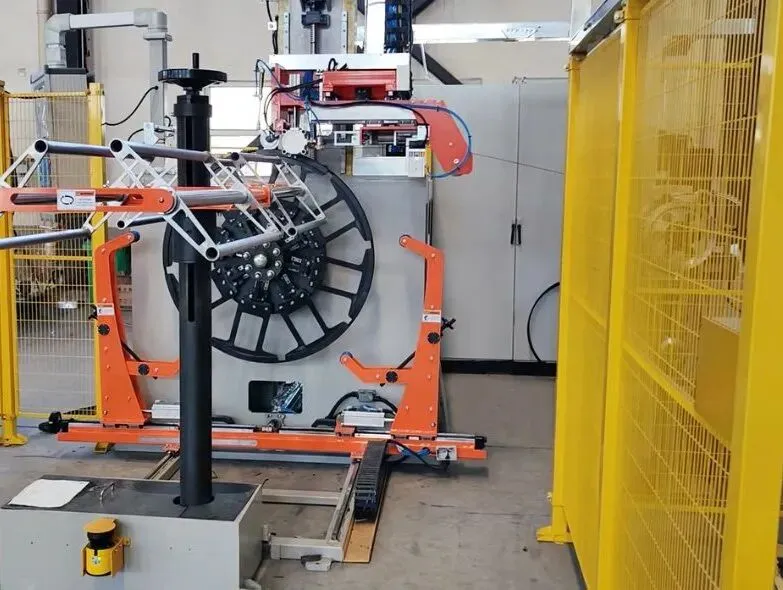

设备适配正六角、斜六角等多种断面形式，通过四轴伺服系统精准控制缠绕、排丝、提升与涨缩四大机构，稳定完成不同断面、不同圈数的胎圈成型；搭配 PLC 主控与菜单式触控界面，支持工艺参数数字化设定与快速换型，为轮胎企业提供高精度、高稳定性的胎圈成型解决方案。

As the core load-bearing component of OTR and giant tires, the arrangement precision of steel wires in cross-section and rubber coating quality of bead rings directly determine the load capacity and service life of tires. To tackle common pain points in the forming process of heavy-duty tire bead rings, including limited adaptability to various cross-sections, frequent wire warping and scattering during coating, high reliance on manual labor and low production efficiency, the OTR/Giant tire bead winding system enables high-precision forming of bead rings in multiple cross-section specifications. Featuring high automation, superior precision and outstanding stability, it delivers a mature forming process solution for tire manufacturers.

The equipment accommodates regular hexagonal, oblique hexagonal and other cross-section profiles. The four-axis servo system precisely controls four key mechanisms: winding, wire arranging, lifting and expanding/collapsing, to steadily realize bead forming with different cross-sections and turn counts. Equipped with PLC main control and menu-type touch interface, it supports digital setting of process parameters and quick model changeover, offering tire enterprises a high-precision and highly stable bead forming solution.

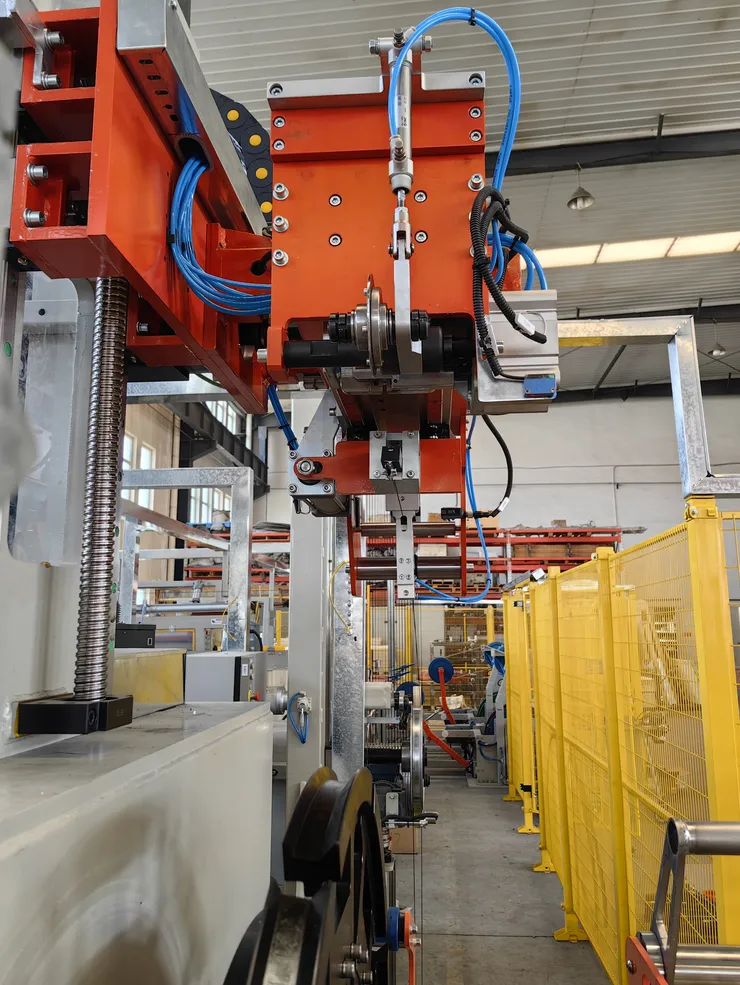

高精度排丝，无翘头。

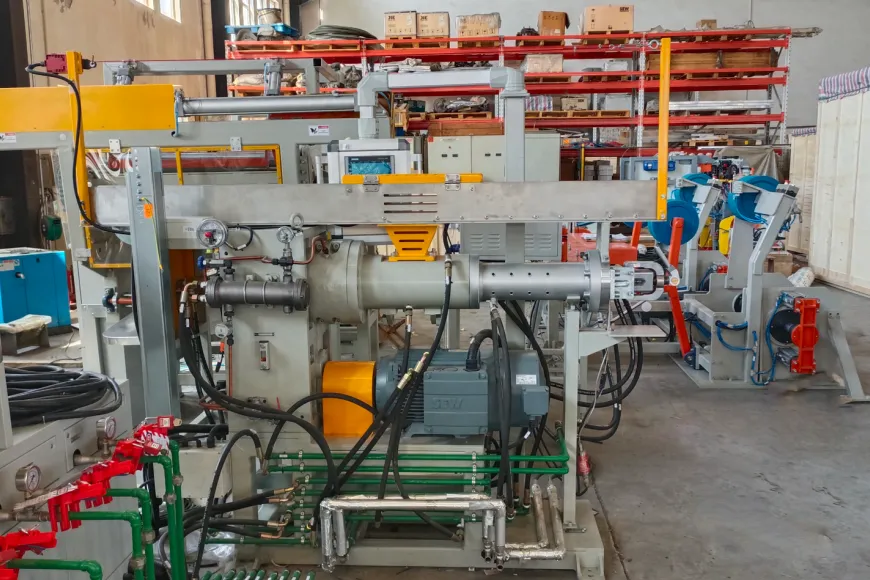

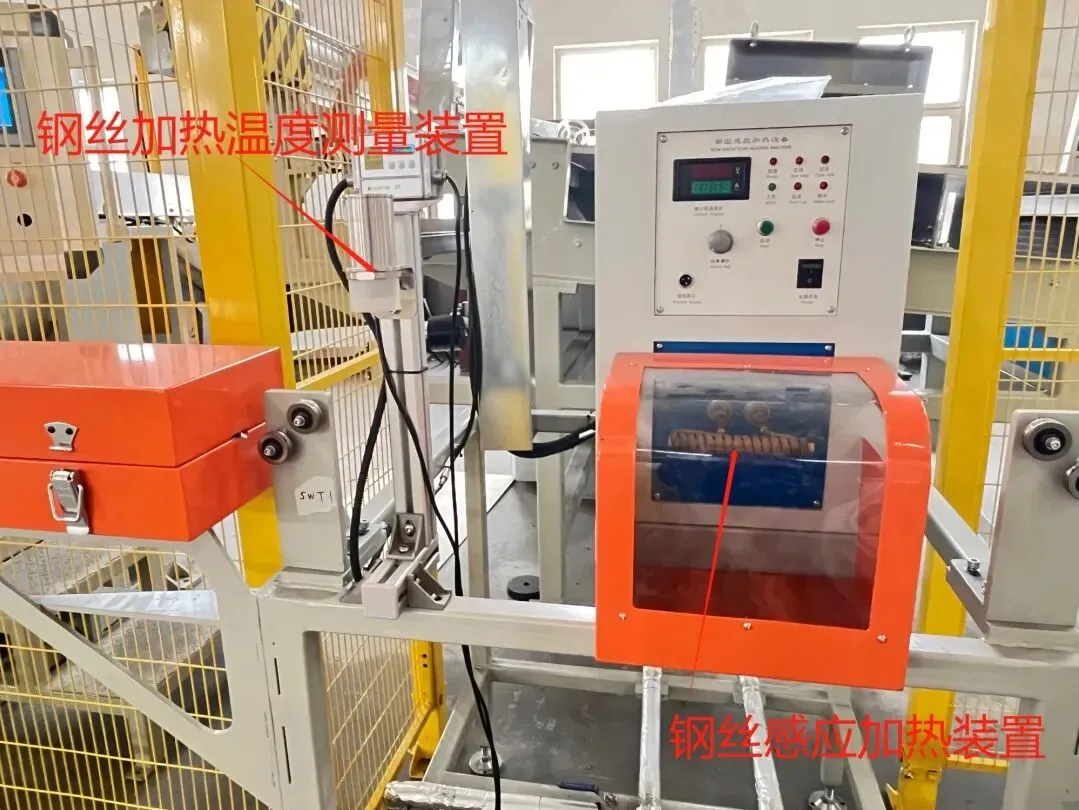

1.高品质：搭载钢丝覆胶后直径实时检测系统，数据可视化展示并支持超差自动报警；配套电动调节式预弯曲装置，确保缠绕过程均匀贴合、无翘头。

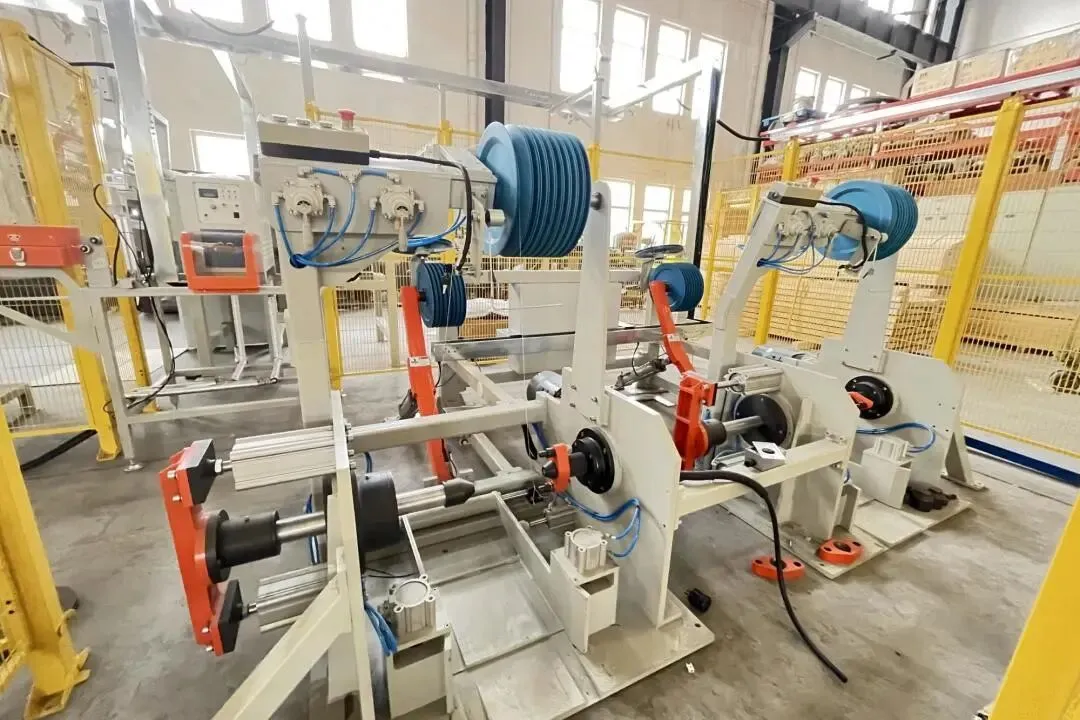

2.大存储：配置＞100 米大容量钢丝储料单元，保障钢丝全程恒速通过覆胶工位，大幅降低挤出机启停频次，持续保障覆胶质量。

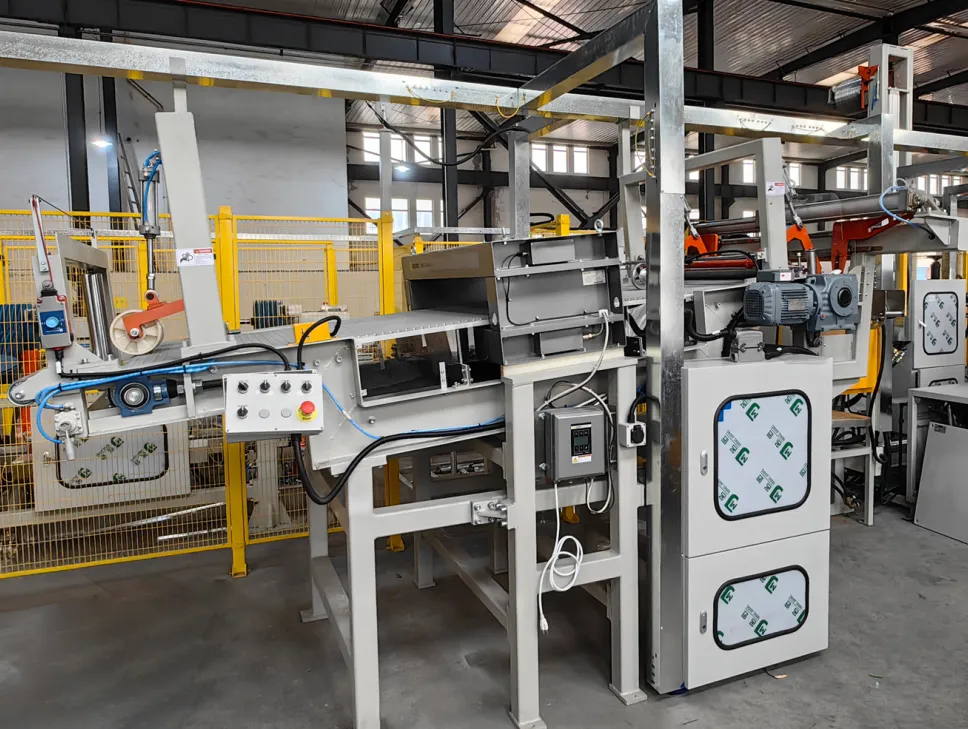

3.全自动：整线采用 PLC 主控+四轴联动伺服控制系统；配套 Z 型自动切胶补给装置，可自动为挤出机续补胶料，全程无需人工干涉全自动运行。

Precise wire arrangement, free of wire warping.

1.Superior Quality: Fitted with a real-time detection system for coated steel wire diameter to visualize data and trigger automatic alarms for out-of-tolerance conditions. Equipped with electrically adjustable pre-bending devices to ensure uniform fitting without warping during winding.

2. Large Wire Storage: A large-capacity wire storage unit of over 100 meters ensures steel wires pass through the coating station at a constant speed throughout the process. It significantly reduces start-stop frequency of the extruder and consistently maintains stable rubber coating quality.

3. Fully Automatic Operation: The whole line adopts PLC main control plus four-axis linked servo control system. Supported by a Z-type automatic rubber cutting and feeding device, it automatically replenishes rubber compound to the extruder and runs fully automatically without manual intervention.

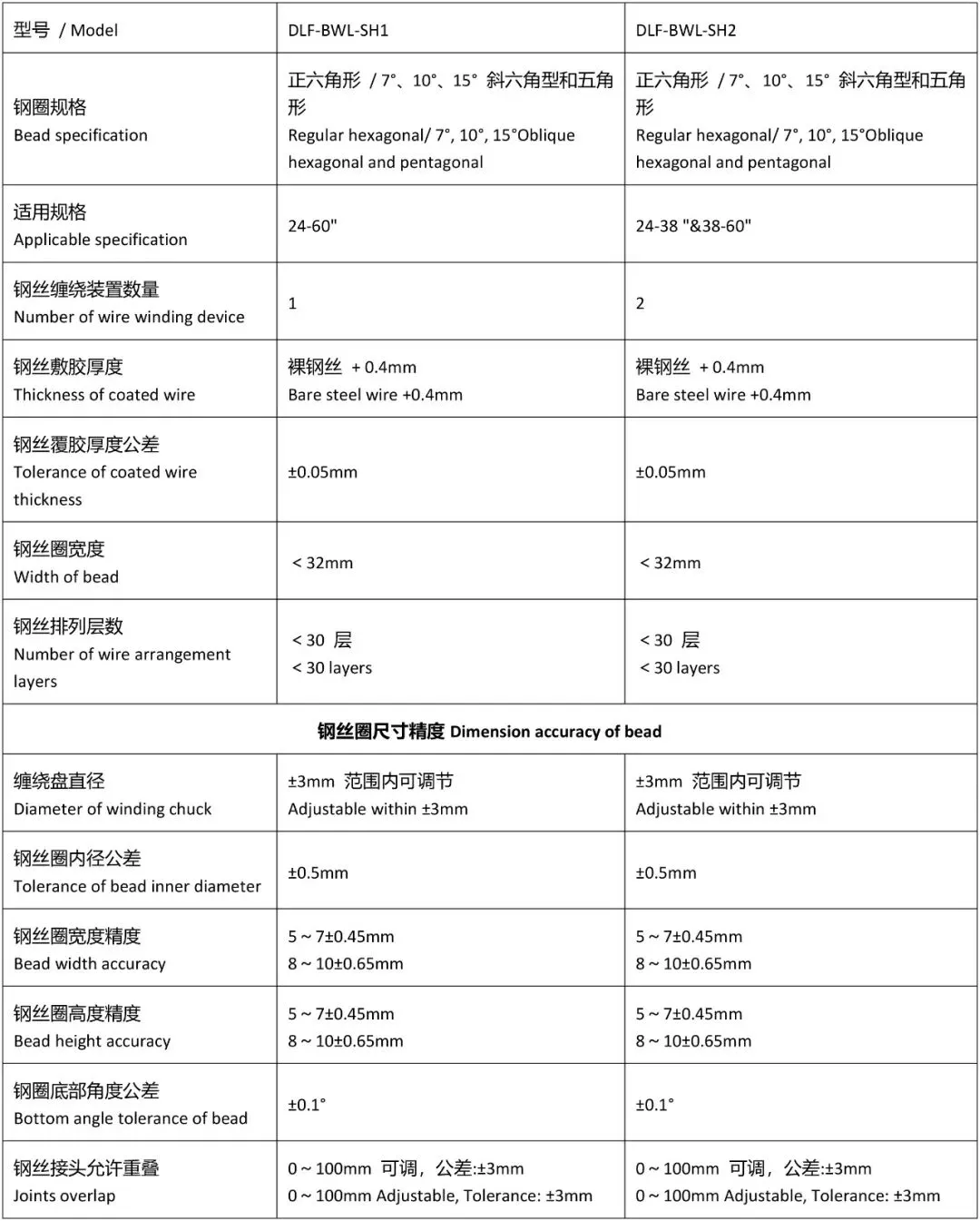

* 注：以上为常规参数，可根据客户实际工艺需求专项定制，更多详细参数可私信获取。

Note: The above are conventional parameters and can be specially customized according to customers' actual process requirements. For more detailed parameters, please contact us via private message.

轮胎制造向着高精度、智能化方向持续升级，高品质钢丝圈成型装备是夯实产品竞争力的关键。我们可依据工厂产能、轮胎规格、工艺标准进行设备个性化定制，提供设备安装调试、工艺指导、售后维保一站式服务。欢迎各大轮胎厂商前来咨询，洽谈合作！

Tire manufacturing is continuously upgrading toward high precision and intelligence. High-quality bead forming equipment is critical to consolidating product competitiveness.We can customize equipment according to factory capacity, tire specifications and process standards, and provide one-stop services including equipment installation & commissioning, technical guidance and after-sales maintenance.Tire manufacturers are welcome to inquire and discuss cooperation with us!
