本届展会以“丝路新机遇亚欧新活力”为主题，以“向新而行、向绿而兴、向智而优、向远而拓”为核心动力采用“一馆多区”专业布局，六大专题展区亮点纷呈，打造高效便捷的国际会展新标杆。
01
大连凯特利催化工程技术有限公司
1
企 业 概 况
大连凯特利催化工程技术有限公司成立于2005年，是由上海鼎之颐投资管理有限公司、中科化物（大连）科技发展有限公司、中国科技产业投资管理有限公司、大连装备投资集团有限公司及自然人共同投资兴建的高新技术企业，注册资本4547万元。
DalianKaiteli Catalytic Engineering Technology Co., Ltd. was established in 2005 as a high-tech enterprise jointly invested by Shanghai Dingzhiyi Investment Management Co., Ltd., CAS-DICP (Dalian) Technology Development Co., Ltd., CAS Investment Management Co., Ltd., Dalian Equipment Investment Group Co., Ltd., and natural persons. With a registered capital of RMB 45.47 million.
大连凯特利催化工程技术有限公司是国家催化工程技术研究中心的唯一产业实体，围绕“气体净化与催化”核心业务，形成了“技术开发-产品制造-全链服务”的完整体系。依托自主研发的30余项专利技术和省级以上科技成果，公司在吸附、脱氢、脱氧、脱硫、食品级二氧化碳净化、甲烷化合成天然气、氮氧化物治理、气体纯化设备等领域形成核心技术集群，覆盖从化工原料净化到环保治理的全场景应用，同时开展与之配套的各类催化剂、吸附剂及工业气体纯化设备，为客户提供从方案设计、产品定制到后期运维的一体化服务，确保技术与实际工况精准匹配，形成“全链条自主可控”和“场景化解决方案”的核心竞争力。目前，公司在国内已拥有上千家用户，并出口新加坡、俄罗斯、印度、越南、卡塔尔、泰国、马来西亚等海外市场，已形成覆盖核工业、半导体、绿氢、食品级二氧化碳等多领域的完整净化技术与产品矩阵，成为支撑国家战略、破解产业痛点、引领绿色发展的核心力量。
Dalian Kaiteli Catalytic Engineering Technology Co., Ltd. is the sole industrial entity of the National Engineering Research Center for Catalysis. Centered on its core business of "Gas Purification and Catalysis", the company has established a complete system encompassing "Technology Development - Product Manufacturing - Full-chain Services". Relying on over 30 self-developed patented technologies and scientific achievements recognized at or above the provincial level, the company has formed core technology clusters in areas including adsorption, dehydrogenation, deoxygenation, desulfurization, food-grade carbon dioxide purification, methanation for synthetic natural gas, nitrogen oxides treatment, and gas purification equipment. These cover full-scenario applications from chemical raw material purification to environmental protection governance. The company also develops corresponding catalysts, adsorbents......
公司始终以高标准严要求践行质量与责任担当，通过了国家ISO9001质量管理体系、ISO14001环境管理体系及ISO45001职业健康安全管理体系认证。荣获“国家知识产权优势企业”“辽宁省瞪羚企业”“辽宁省省级企业技术中心”及“辽宁省级专精特新‘小巨人’企业”等荣誉，同时牵头成立“辽宁凯特利催化气体净化产学研联盟”，深化产学研合作，持续引领行业技术升级......
02
产 品 展 示
1

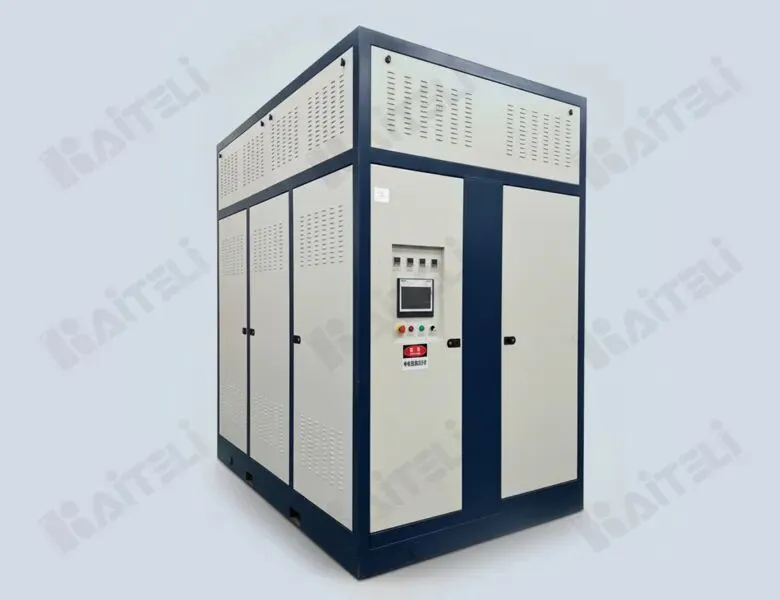

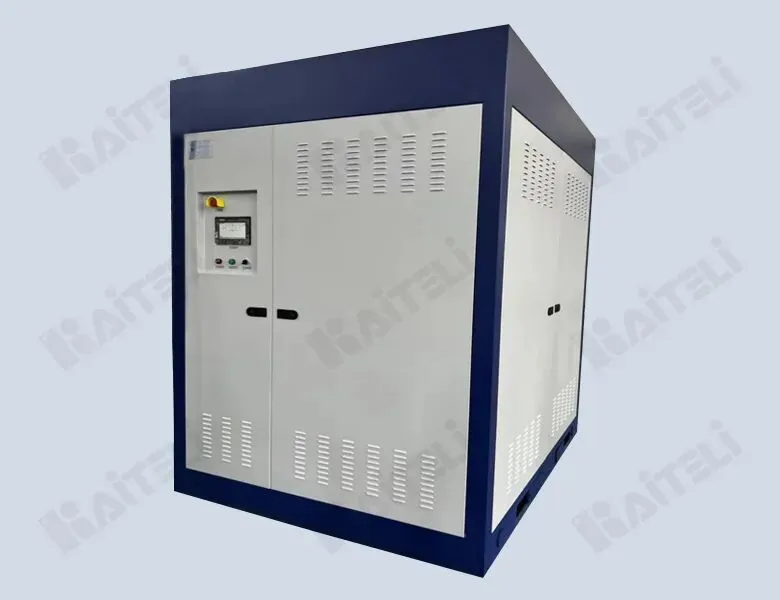

氮气纯化器
本纯化器采用OW流程对氮气进行纯化，原料氮气进入纯化器后，经过O(催化氧化)流程，利用高温贵金属催化剂特性，可将氮气中的杂H2，CO，CH4等杂质转化为H2O，CO2，再经过W(常温吸附反应器)，可有效的吸附O2 , H2O, CO2等杂质，床层吸附饱和后，通入氢气进行再生。常温吸附反应器为一开一备设计，可实现连续工作。■ 工艺流程：催化剂脱除O2、H2、CO、THC； 吸附剂脱除O2、CO2、H2O。
This purifier employs the OW process for nitrogen purification. The feed nitrogen enters the purifier and first undergoes the O (Catalytic Oxidation) process. Utilizing the properties of a high-temperature noble metal catalyst, this process converts impurities such as H2, CO, and CH4 in the nitrogen into H2O and CO2. Subsequently, the gas passes through the W (Ambient Temperature Adsorption Reactor), which effectively removes impurities like O2, H2O, and CO2. Once the bed reaches adsorption saturation, it is regenerated by introducing hydrogen. The ambient temperature adsorption reactors are designed in one-operating, one-standby configuration, enabling continuous operation.
2
氢气纯化器
本纯化器采用WX流程对氢气进行纯化，原料氢气进入纯化器后，经过常温吸附流程可初步将H2O, O2，CO2，CO脱除至10ppb以下，床层吸附饱和后，进行再生，常温吸附反应器为一开一备设计，可实现连续工作。再经过高温吸附流程将氢气中的H2O，O2，CO，CO2，CH4，N2等杂质脱除至1ppb以下。■ 工艺流程：吸气脱除CO2、O2、N2、CO、THC、H2O； 吸附剂脱除O2、CO2、H2O。
Xiumi Technology Co.,Ltd. is an enterprise focusing on technologThis purifier adopts the WX process for hydrogen purification. The feed hydrogen enters the purifier, where ambient-temperature adsorption initially removes H2O, O2，CO2，and CO to below 10 ppb.Once the adsorbent bed reaches saturation, it undergoes regeneration.The ambient-temperature adsorption reactors are designed with one unit in operation and one on standby, enabling continuous operation. Subsequently, a high-temperature adsorption process further removes impurities such as H2O，O2，CO，CO2，CH4，and N2 from the hydrogen to below 1 ppb.y development, product innovation and service provision.
3
氧气纯化器
本纯化器采用OW流程对氧气进行纯化，原料氧气进入纯化器后，利用高温贵金属催化剂特性，可将氧气中的杂质H2，CO，CH4,NMHC等杂质转化为H2O，CO2，再经过W(常温吸附反应器)，将原料气中的H2O, CO2等杂质脱除。床层吸附饱和后进行升温再生，常温吸附反应器为一开一备设计，可实现连续工作。■ 工艺流程：催化剂脱除H2、CO、THC；吸附剂脱除CO2、H2O。
This purifier adopts the OW process for oxygen purification. The feed oxygen enters the purifier, where impurities such as H2, CO, CH4, and NMHC in the oxygen are converted into H2O and CO2 by utilizing the characteristics of a high-temperature noble metal catalyst. These are then removed by a W (ambient-temperature adsorption reactor), which eliminates impurities such as H2O and CO2 from the feed gas. Once the bed reaches adsorption saturation, it undergoes heating for regeneration. The ambient-temperature adsorption reactors are designed with one in operation and one on standby, enabling continuous operation.
4

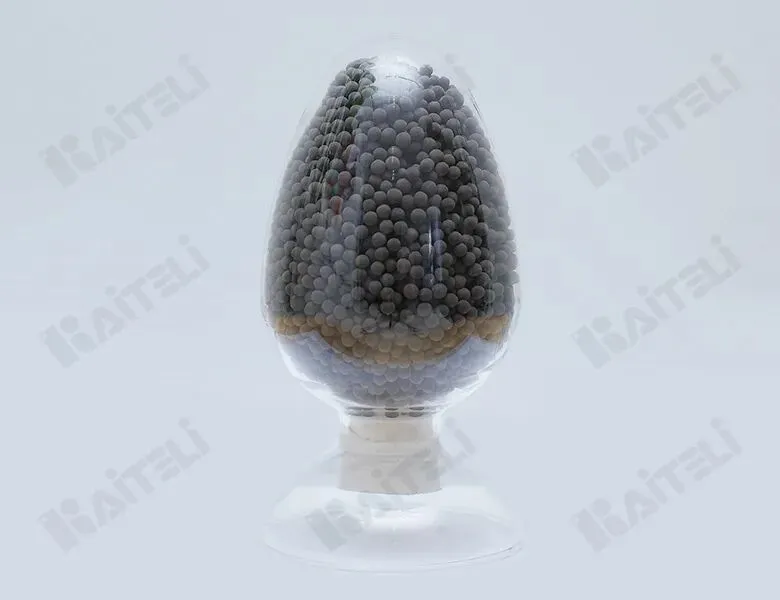

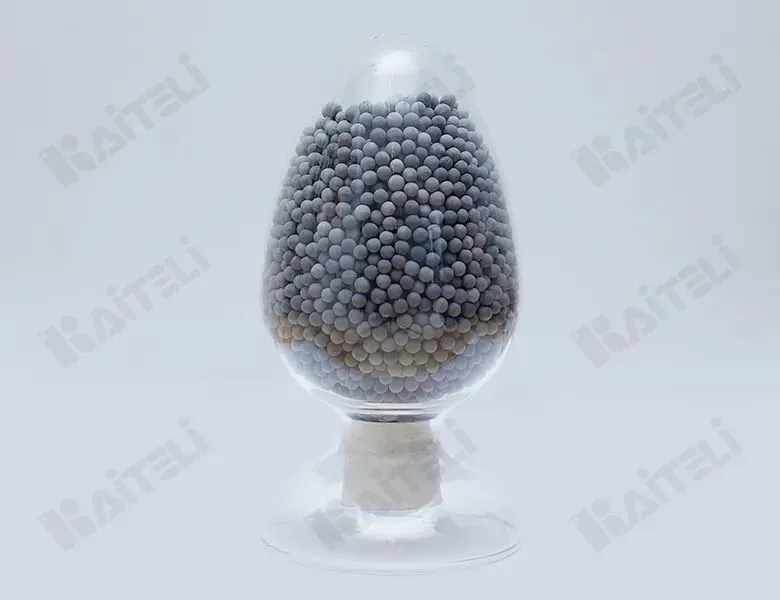

O-345高效钯脱氧剂
O-345高效钯脱氧剂系Pd/Al2O3活性非均布催化剂，其活性组分呈蛋壳型结构，从而提高单位活性组分利用率。与同类催化剂相比，贵金属含量低，因而成本大幅降低，具有活性高、稳定性好、成本低的特点。1987年通过了中国科学院组织的技术成果鉴定，1994年被评为国家级新产品，技术达到国际先进水平。
■ 专利号：201911044519.9■ 工作原理：2H2+ O2 → 2H2O■ 应用领域：本产品可用于石油、化工、冶金、电子、医药、食品等工业含氢气体的脱氧，也可用于无氢气体加氢脱氧。
O-345 high-efficiency palladium deoxidizer is a Pd/Al₂O₃ catalyst with non-uniform active component distribution, featuring an egg-shell type structure for its active phase, thereby enhancing the utilization efficiency per unit of active component. Compared with similar catalysts, it possesses a lower precious metal content, resulting in significantly reduced costs, and exhibits characteristics of high activity, excellent stability, and low cost. It passed the technical achievement appraisal organized by the Chinese Academy of Sciences in 1987 and was recognized as a national-level new product in 1994, with its technology reaching international advanced levels.■ Patent Number：201911044519.9■ Working Principle：2H2 + O2 → 2H2O
■ Application Areas：This product can be used for deoxygenation of hydrogen-containing gases in industries such as petroleum, chemical, metallurgy, electronics, pharmaceuticals, and food, and can also be used for hydrogenation deoxygenation of non-hydrogen gases.
5
PEE型乙烯脱氧剂
PEE型脱氧剂为乙烯脱氧专用型脱氧剂，对乙烯不发生加成、氧化、聚合等副反应。该脱氧剂具有脱氧容量高、机械强度好、耐热温度高、脱氧精度高等特点。■ 专利号：201610675443.X■ 工作原理：MnOx+nO2 → MnOx+2n■ 应用领域：本产品应用于聚乙烯工业生产原料乙烯中微量氧的脱除。
The PEE-type deoxidizer is specifically designed for ethylene deoxygenation, without causing side reactions such as addition, oxidation, or polymerization with ethylene. This deoxidizer features high deoxygenation capacity, excellent mechanical strength, high heat resistance temperature, and high deoxygenation precision.■ Patent Number：201610675443.X■ Working Principle：MnOx+nO2 → MnOx+2n■ Application Areas：This product is applied for the removal of trace oxygen from ethylene, the raw material in polyethylene industrial production, using a deoxidizer.
6

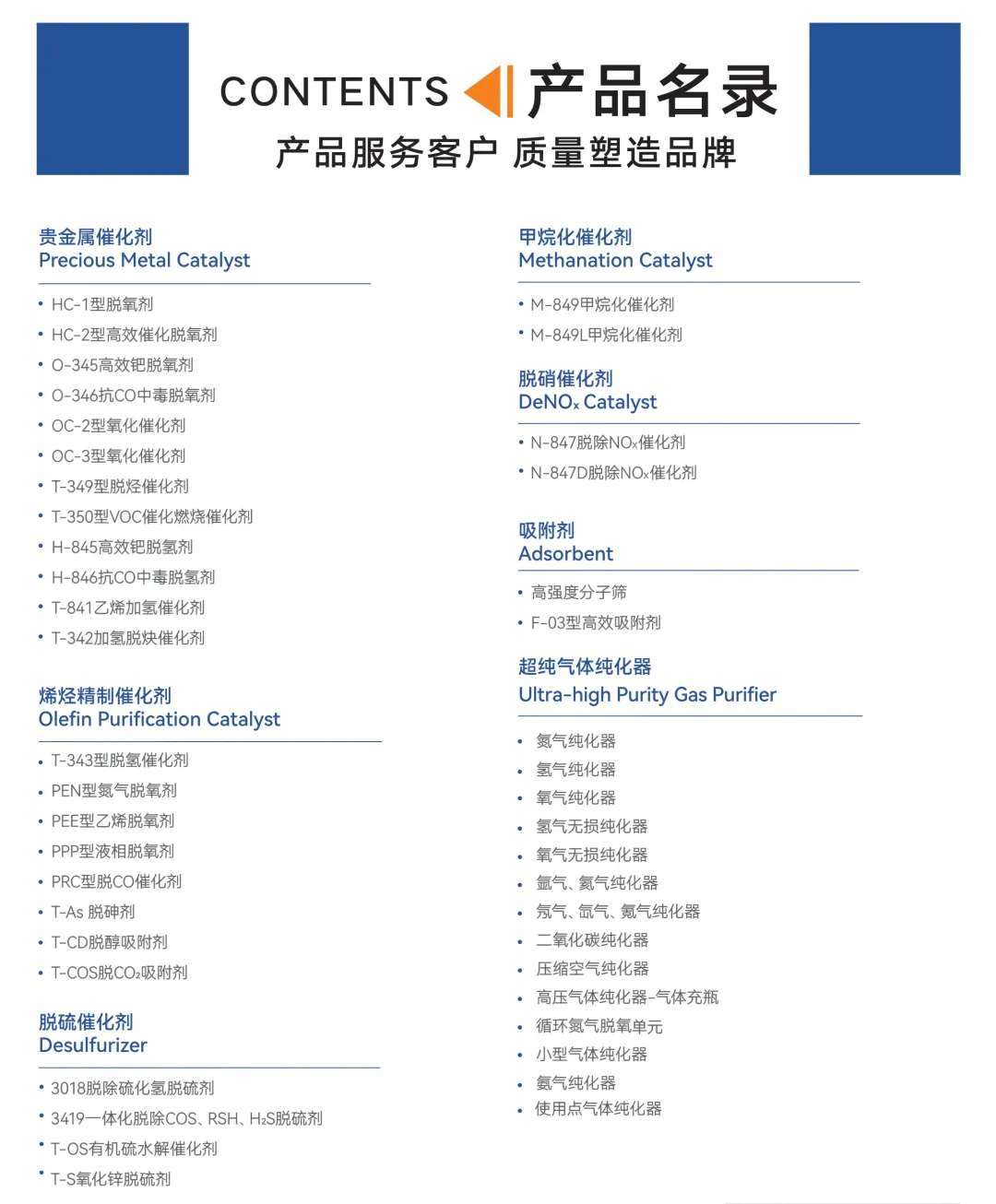

产品名录
