聚氨酯复合材料杆塔一体化生产线

蒸汽内固化 || 冷却水在线脱模

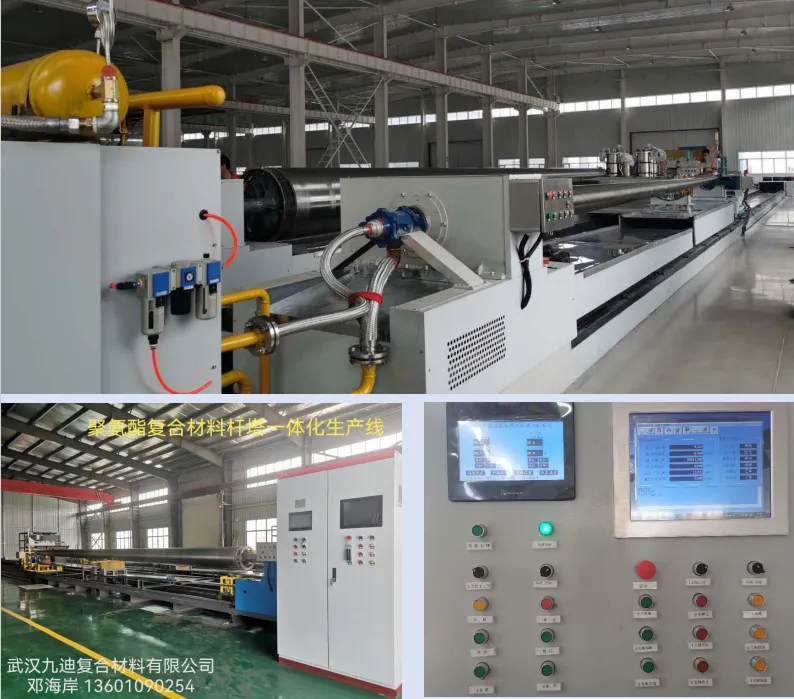

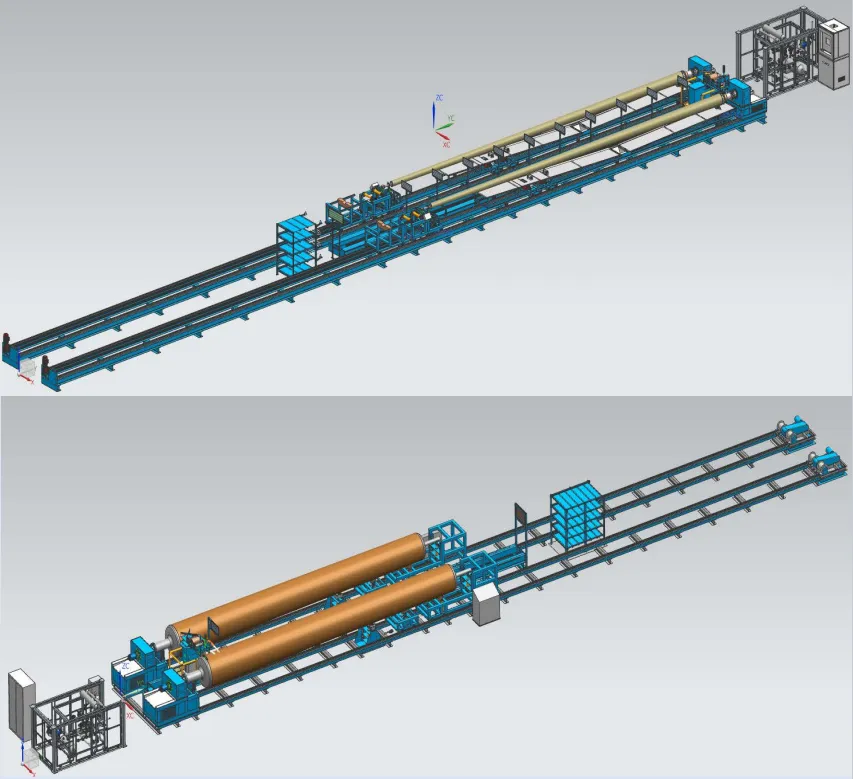

聚氨酯复合材料杆塔一体化生产线

生产线组成

一、蒸汽锅炉及输送管道 (Steam boilers and piping for transportation)

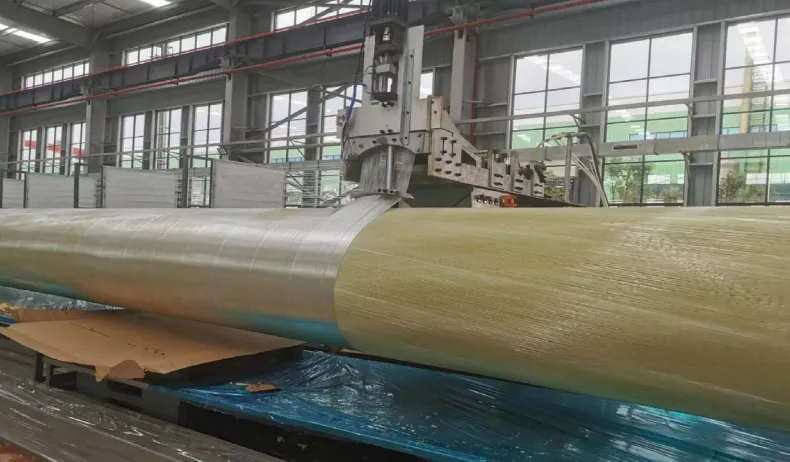

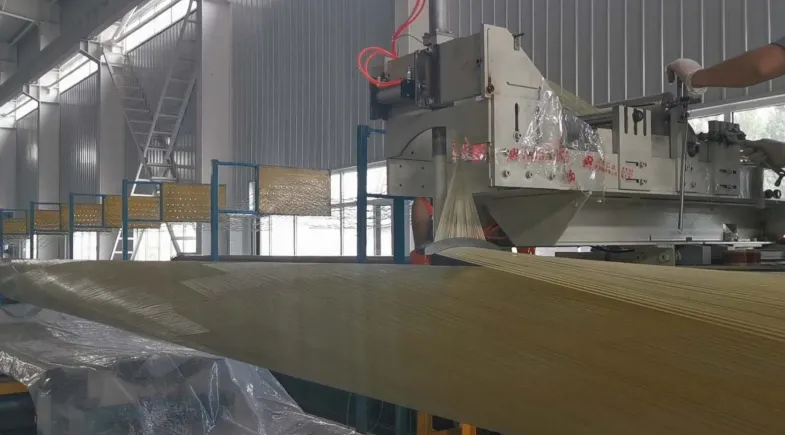

二、纤维缠绕及其控制系统 (Fiber winding and its control system)

三、蒸汽固化及其控制系统 (Steam curing and its control system)

四、冷却水脱模及拖曳系统 (Cooling water de-molding and towing system)

五、原材料供应及输送系统 (Raw material supply and delivery systems)

六、产品搬离及运送 (Product removal and transportation)

生产线特

一、缠绕、固化、脱模一体化设计，生产过程中没有模具吊装和转运；

Integrated winding, curing and demolding design eliminates the need for mold lifting and transferring during production;

二、二工位设计，满足连续生产需求；

Dual-station design for uninterrupted production;

三、蒸汽模内加热固化，热效最高、固化质量最好；

Steam mold internal heating curing, the highest thermal energy efficiency, the best curing quality;

四、冷却水无损伤快速脱模，其原理是利用金属模具与聚合物基复合材料的热

膨胀系数差异，在金属模具快速冷却时实现两者分离；

The cooling water is non-destructive and rapid demolding, the principle of which is to take advantage of the difference in the coefficients of thermal expansion of metal molds and polymer-based composites to achieve separation of the two when the metal molds are rapidly cooled;

五、圆弧导丝头和针环组成的布纱系统，实现大纤维量精准铺层和减少过渡段

纤维冗余；

The system consisting of circular guide head and needle ring achieves precise lay-up of large fiber volume and reduces fiber redundancy in the transition section;

六、自动供胶系统，实现制品胶含量的精确控制；

Automatic glue supply system, realize the precise control of the glue content of the products;

七、纤维的托盘供应方式及随动式支撑架设计，大大降低了工人的劳动强度；

The pallet supply method of fiber and the design of follow-on support frame greatly reduce the labor intensity of workers;

八、头、尾过渡段不浸胶，节省成本、避免产生固废；

The head and end transition section is not impregnated with glue, saving cost and avoiding the generation of solid waste;

九、头、尾挂纱针环可反复利用，显著节能减排。

The head and end hanging fiber rings can be utilized repeatedly, significantly saving energy and reducing emissions.

一、复合材料电杆规格：8 米、9 米、10 米、12 米、15 米、18 米

Composite material electric pole specifications: 8 meters, 9 meters, 10 meters， 12 meters, 15 meters，18 meters

二、复合材料杆塔规格：最高组装至净高 35 米

Composite tower specifications: assembled up to a maximum of 35 meters height

聚氨酯复合材料电杆/杆塔特点

Characteristics of polyurethane composite poles/towers

一、强度高、韧性好，能有效抵御台风肆虐

High strength and good toughness to withstand typhoon ravages effectively

二、质量轻，方便运输和安装

Light weight, easy transportation and installation

三、耐腐蚀、抗老化、免维护

Corrosion-resistant, anti-deterioration, maintenance-free

四、绝缘性好，有效降低电网闪络和遭受雷击

Good insulation, effectively reducing grid flashover and lightning strikes

五、环境适应性好，耐寒、耐温、耐盐碱

Good environmental adaptability, cold, temperature and salinity tolerance

六、对雷达波透明、无磁性

Transparent to radar waves and non-magnetic

七、使用寿命长

Long service life

聚氨酯复合材料杆塔的其它用途

一、通信/照明杆塔

Letter/Lighting Tower

二、避雷器杆塔

Lightning arrester towers

三、森林防火传感器杆塔

Forest Fire Sensor Tower

四、复杂电磁环境用灯杆

Lighting poles for complex electromagnetic environments

五、边境监控杆塔

Border surveillance towers

六、高速公路、高铁信号塔

Highway and high-speed rail signal tower and so on...

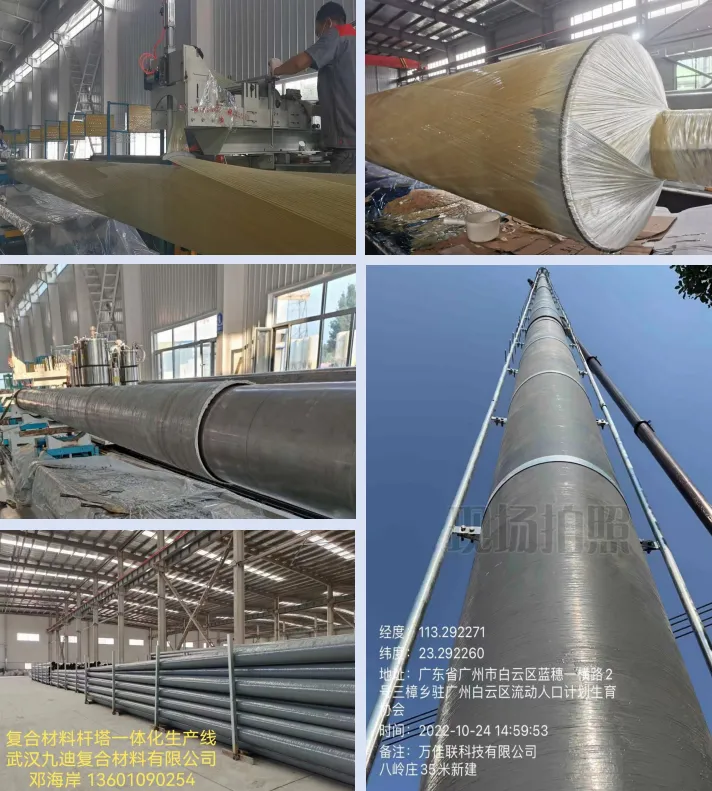

工程案例 Project Cases

一、国家电网武汉南瑞有限责任公司

State Grid Wuhan Nanrui Co.

二、四川航天拓鑫玄武岩实业有限公司

Sichuan Aerospace Tuo Xin Basalt Industry Co.

三、浙江杜朗德新材料科技有限公司

Zhejiang Du Lang De New Material Technology Co.

四、北京明嘉汇科科技有限公司

Beijing Mingjiahuike Technology Co.

五、湖南省泓泽新能源技术股份有限公司

Hunan Hongze New Energy Technology Co.

六、湖南强泰新材料有限公司

Hunan Qiangtai New Material Co.

七、河北嘉木子电力科技有限公司

Hebei Jiamuzi Electric Power Technology Co.

八、广州广华智电科技有限公司

Guangzhou Guanghua Zhidian Technology Co.

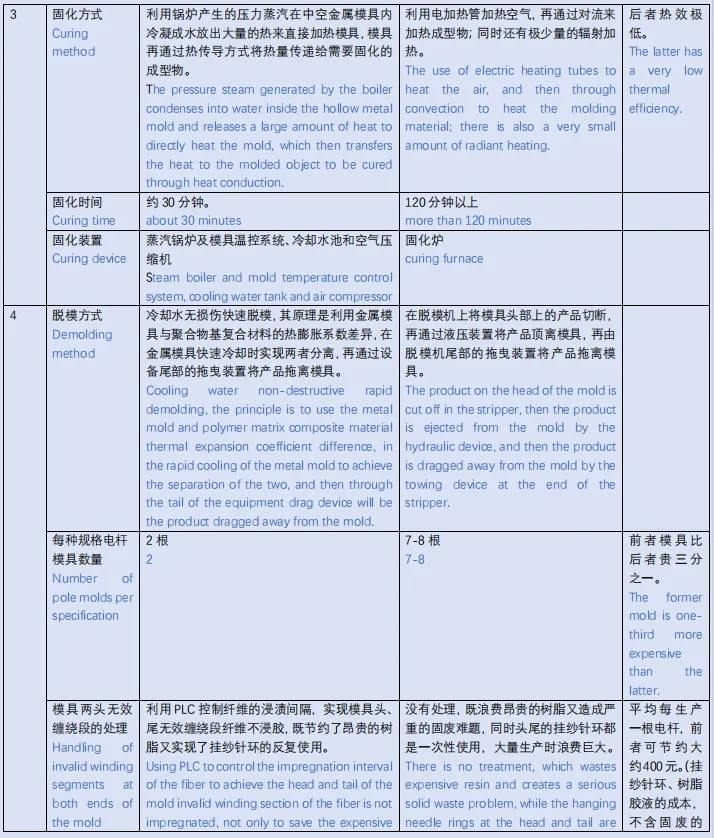

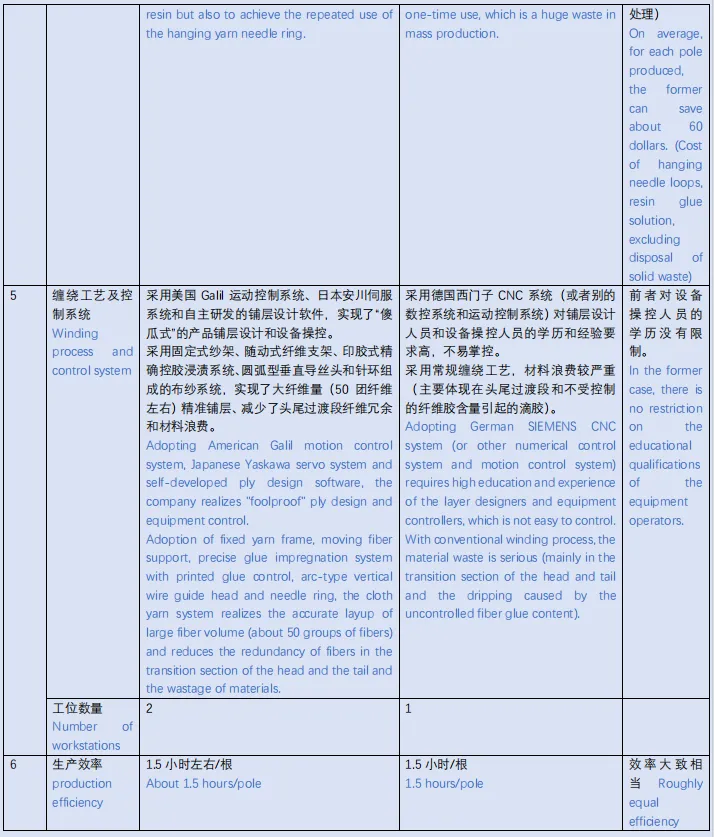

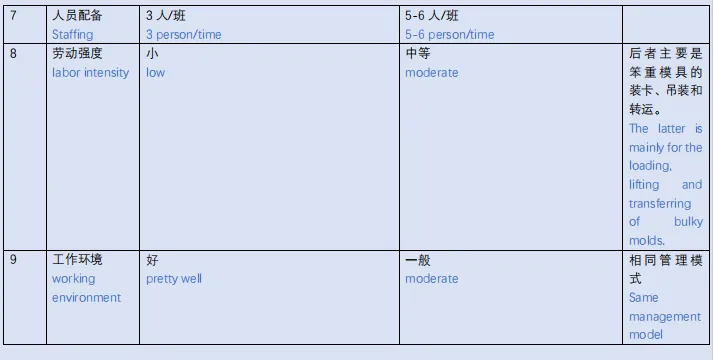

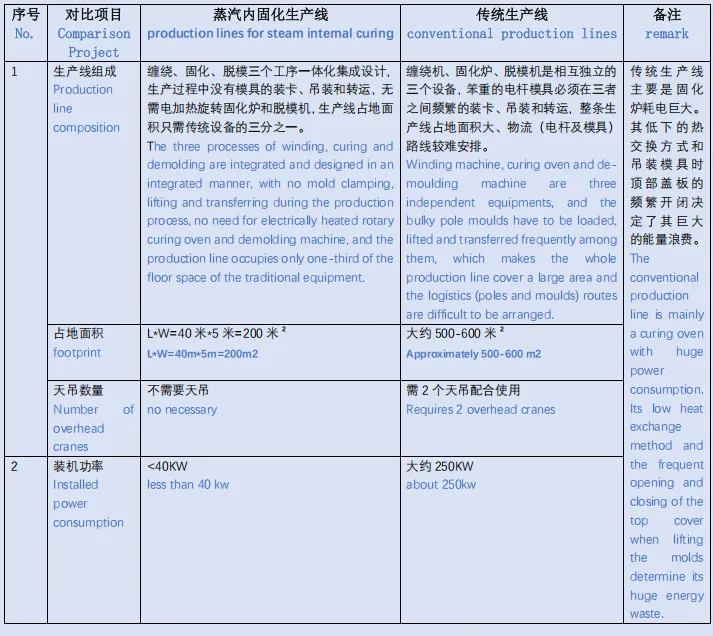

蒸汽内固化复合材料杆塔生产线与传统生产线的比较
