Compactor Plastic Pelletizing Line
Application
The compactor-type pelletizing line is suitable for pelletizing lightweight and loose film materials that are difficult to feed directly into an extruder. It is commonly used for processing plastic films such as PP, PE, BOPP, CPP, HDPE, LDPE, and LLDPE.
After entering the compactor, the material is cut and densified. The high-speed rotating compactor then throws the material along the flow channel and feeds it into the barrel of a single-screw extruder.
Inside the compactor, the temperature rises naturally during operation. The plastic softens slightly, and moisture is released before extrusion begins.
Recyclable Materials

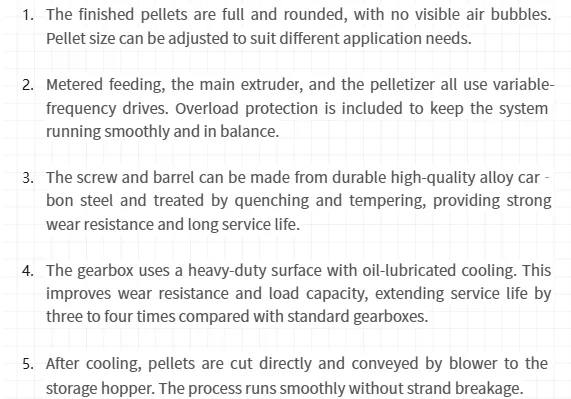

Features
Specicfications

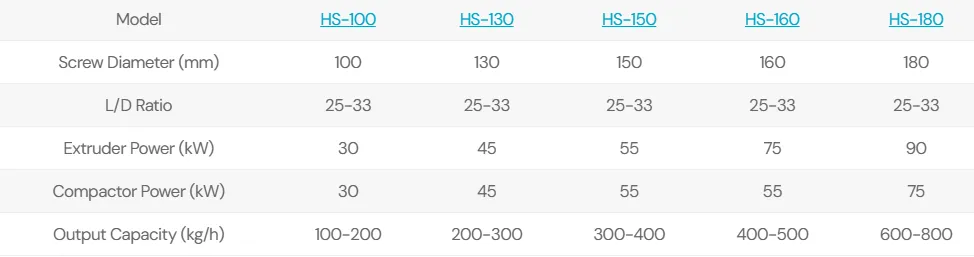

Single-Stage
This pelletizing system is made up of a conveyor, compactor chamber, single-screw extruder, hydraulic die-head filter, cooling water trough, pelletizing system, air conveying hopper, and an electrical control cabinet.

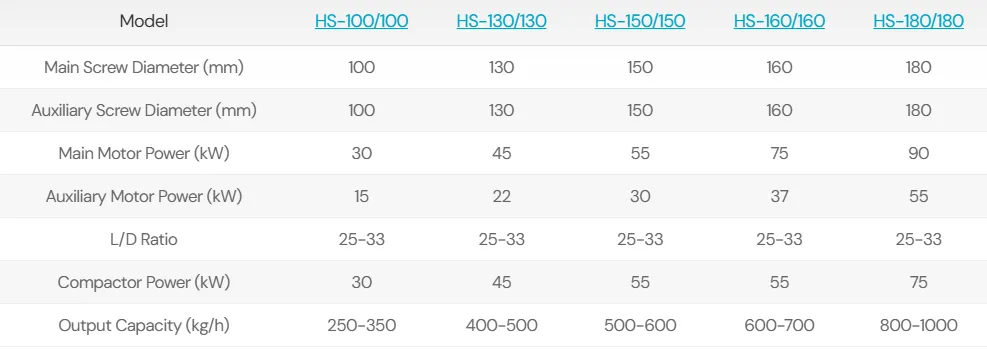

Double-Stage
This pelletizing system is made up of a conveyor, compactor chamber, single-screw extruder, auxiliary single-screw extruder, two hydraulic die-head filters, cooling water trough, pelletizing system, air conveying hopper, and an electrical control cabinet.

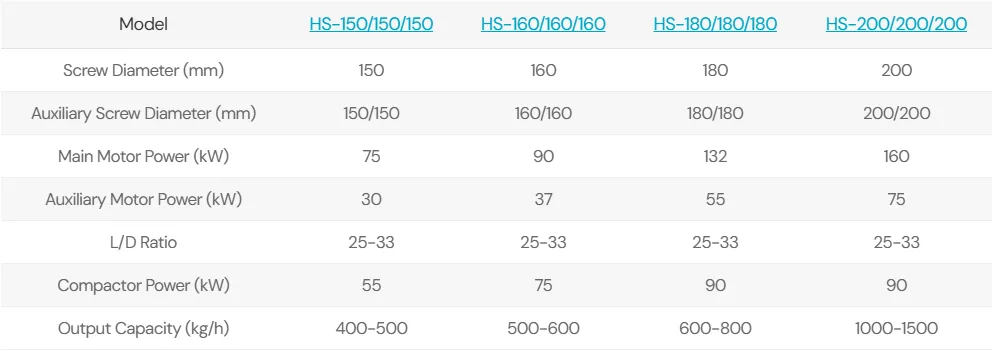

Triple-Stage
If wanan further details about this system/line, chat with us via +86-13888623999 .
