在冰箱、冷柜的生产中，门封条是影响密封效果和能耗的关键一环。而它的生产，往往面临着工序分散、人工成本高、效率上不去等难题。有没有一条生产线，能把挤出、打孔、切角、穿磁条全部搞定，还能实现自动化运行？
今天介绍的就是这样一套方案——在线穿磁条冰箱门封条生产线，整线仅需1人操作，20年技术积累藏在每个细节里。
当然，不同企业的车间布局、产能需求、产品规格各不相同，标准配置未必适合所有场景。因此，我们不仅提供成熟的标准化机型，更积累了丰富的非标定制经验，为客户量身打造专属方案。
Certainly, the layout of workshops, production capacity requirements, and product specifications vary across different enterprises, making standard configurations unsuitable for all scenarios. Therefore, we not only offer mature standardized models but also have accumulated extensive experience in non-standard customization, delivering tailor-made solutions for clients.
我公司是冰箱门封条生产线专业生产厂家，拥有超过20年的生产研发经验。

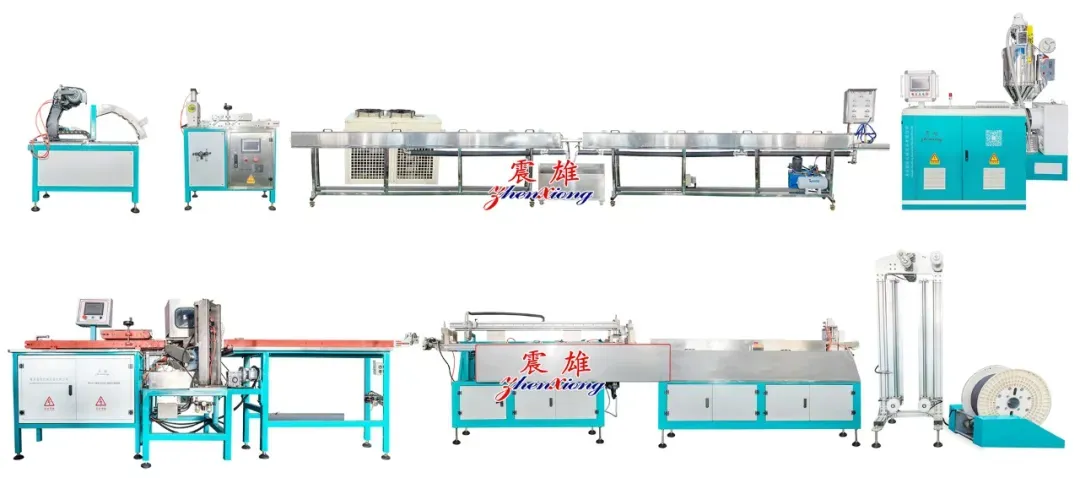

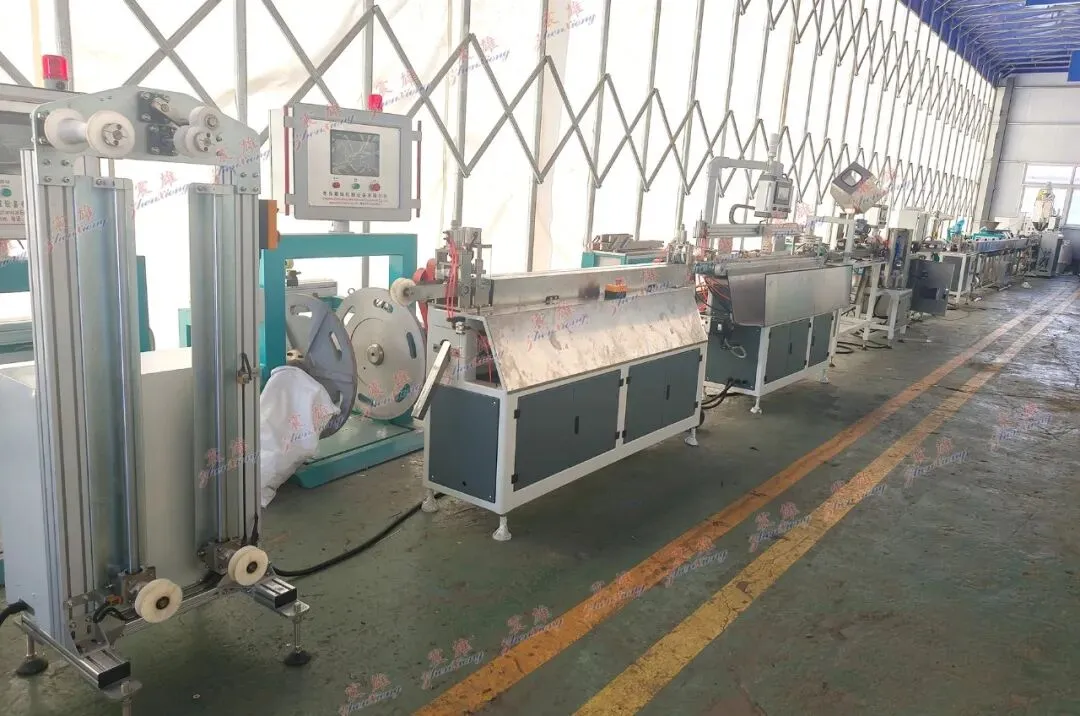

在线穿磁条冰箱门封条生产线集门封条生产、自动打孔、45°切角、在线穿磁条于一体，实现门封条在线穿磁条，整线全部实现自动化生产，整线只需1人操作，节省人工，生产效率大大提高。
Our company is a professional manufacturer of refrigerator door gasket production lines, with over 20 years of production and research and development experience.
The refrigerator door gasket production line with online magnetic strip inserting machine integrates automatic punching, 45 ° cutting, and online magnetic strip production, achieving online magnetic strip production for door gasket. The entire line is fully automated, requiring only one person to operate, saving labor and greatly improving production efficiency.
▶ 配置5P风冷式冷水机组，制品充分快速冷却定型，冷却水温可根据需要手动调节控制。

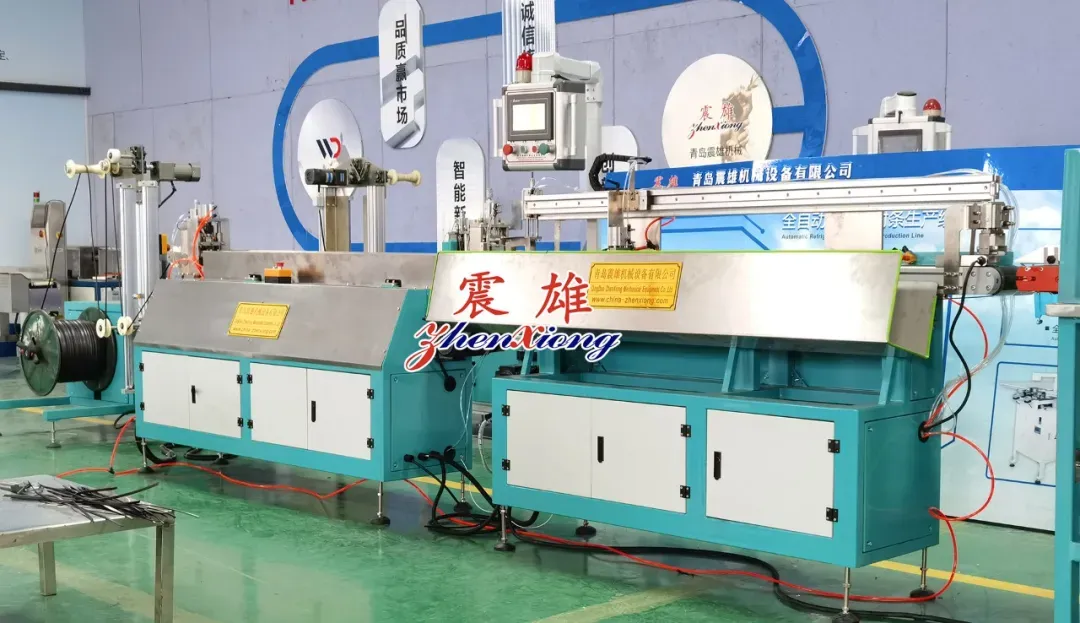

SJ75 extruder for online magnetic strip refrigerator door gasket production line, equipped with PVC professional separation screw, high production capacity and good material plasticization effect.
The head mold of online magnetic strip refrigerator door gasket production line is made of 40Cr mold steel, tempered and forged, with high strength, wear resistance and high mold precision.
The online magnetic strip refrigerator door gasket production line is equipped with a 5P air-cooled chiller, the product is fully and quickly cooled and shaped, and the cooling water temperature can be manually adjusted and controlled as needed.
The online magnetic strip refrigerator door gasket production line is equipped with an automatic drying feeder, which automatically alarms for overload and lack of material, reducing labor costs;
The online magnetic strip refrigerator door gasket production line has two cooling water tanks, each section is 4 meters, the cooling water path is long, and circulating water spray cooling is adopted, which is fast and uniform in cooling, and the product shaping effect is good.
The traction speed of the online magnetic strip refrigerator door gasket production line is controlled by a frequency converter, and it is equipped with a pneumatic cutting device, and the cutting length is adjustable.

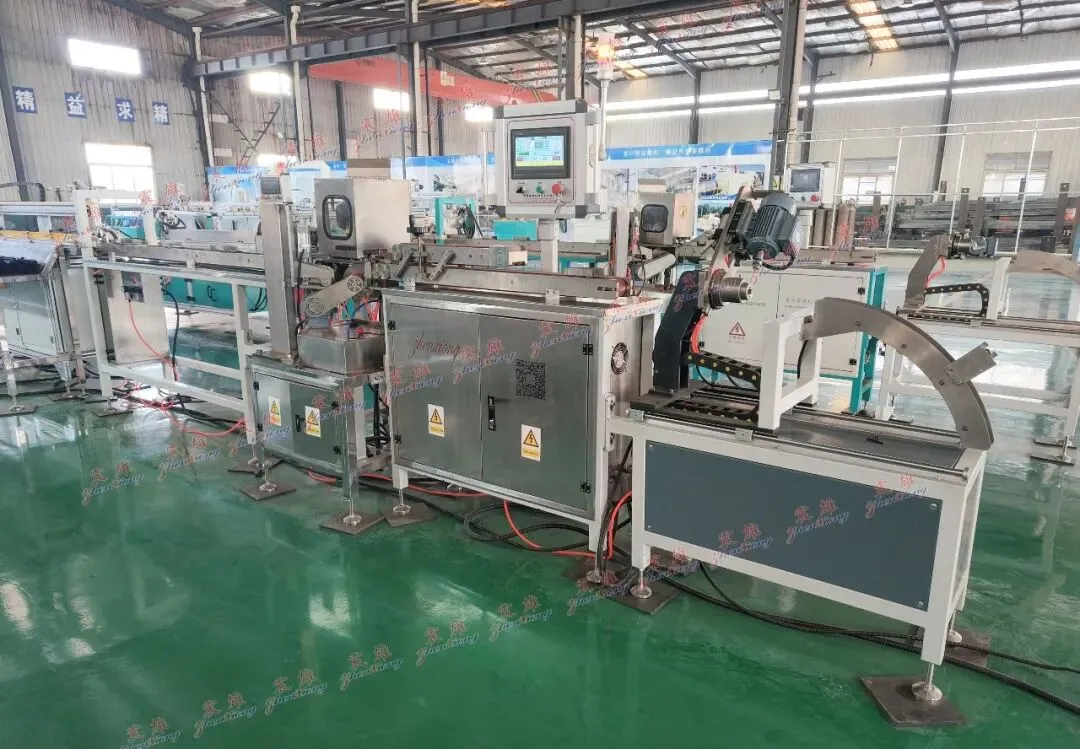

The 45° fully automatic cutting machine of the online magnetic strip refrigerator door gasket production line can cut the two ends of the rubber strip into a 45º angle, with a cutting accuracy of ±1mm.

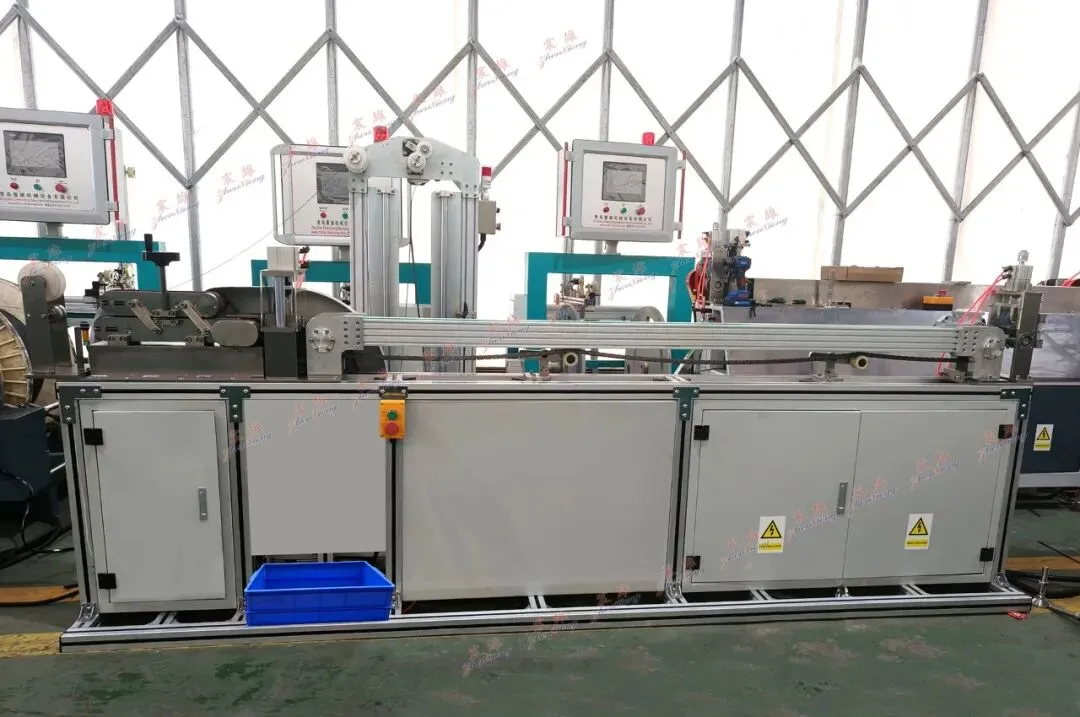

The length range of the magnetic strip of the online magnetic strip refrigerator door gasket production line is 180-1800mm, and the accuracy of magnetic insertion is high.

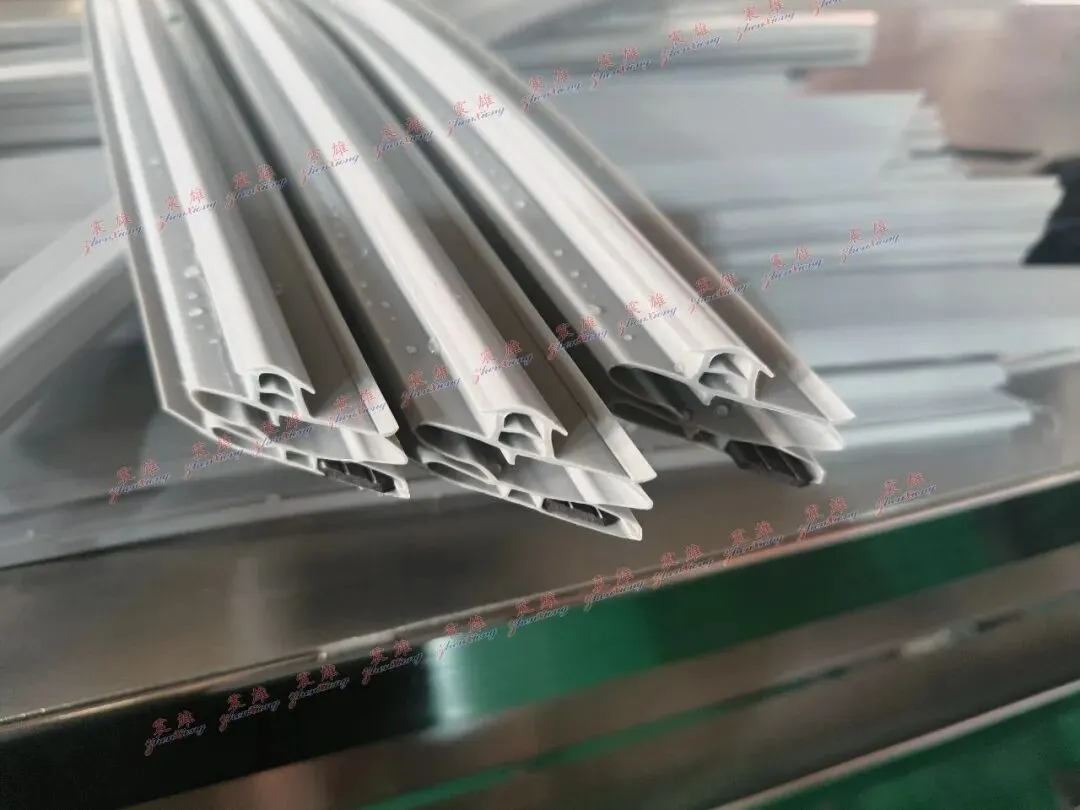

The products produced by the online magnetic strip refrigerator door gasket production line have smooth surface without burrs, strong magnetism, good sealing, high and low temperature resistance, high and low temperature resistance, and long-term use is not easy to age and deform.
Widely used in various refrigerators, freezers, water dispensers, beverage cabinets, disinfection cabinets, kitchen utensils, profile doors and windows and various daily products and other industrial products.
